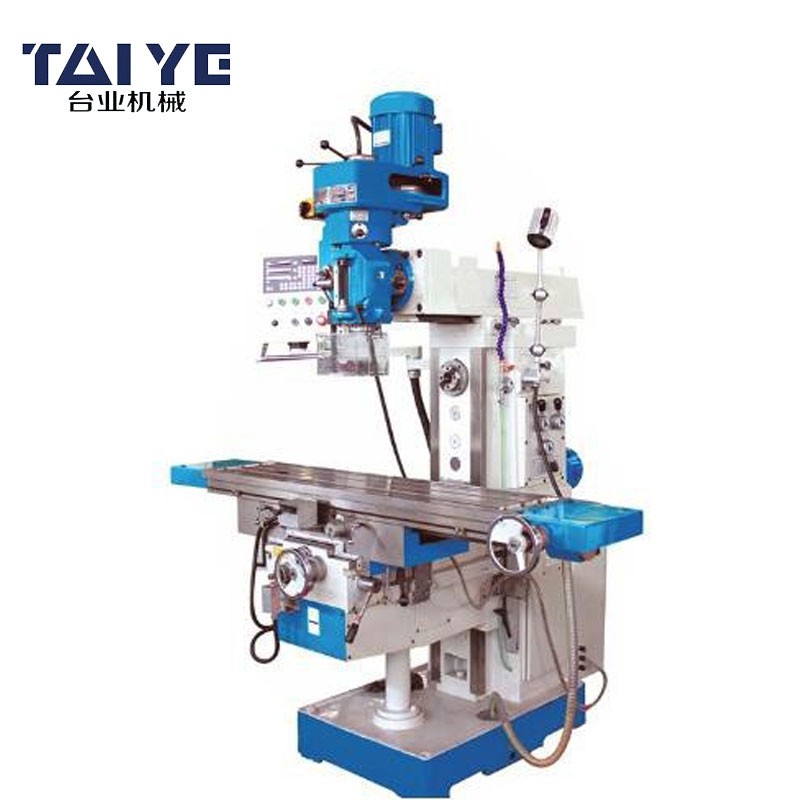

No. 4 Turret Milling Machine For Metal Machining
Features:
1.Horizontal spindle with large speed range, suitable for lowspeed heavy load process and high-speed process.
2.Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable.
3.Centralized button panel controls the rapid feed and return of table, convenient and saving time.
4.High speed variable milling head on available.
No. 4 Turret milling machine | Main technical parameters | Unit |
Worktable Size | 1270*254 | MM |
X Axis travel | 750 | MM |
Y Axis travel | 400 | MM |
Z Axis travel | 400 | MM |
Spindle tube stroke | 127 | MM |
Max distance from the end face of the spindle to the table | 0-460 | MM |
Spindle Speed | 80-4540 | RPM / MIN |
Spindle taper | R8(NT30) | |
Main spindle Power | 3 | KW |
Pump motor power | 0.04 | KW |
Front and rear rotation angle | ± 45 | Degree |
Left and right rotation angle | ± 90 | Degree |
Max loading weight for worktable | 350 | KG |
Weight | 1300 | KG |
Dimension | 1800*1800*2100 | MM |
Packing & Delivery
Packing Details : Gerenal packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
