Name: Guide Screw 丝杆
Brand: HIWIN /PMI
Original: Taiwan
Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.

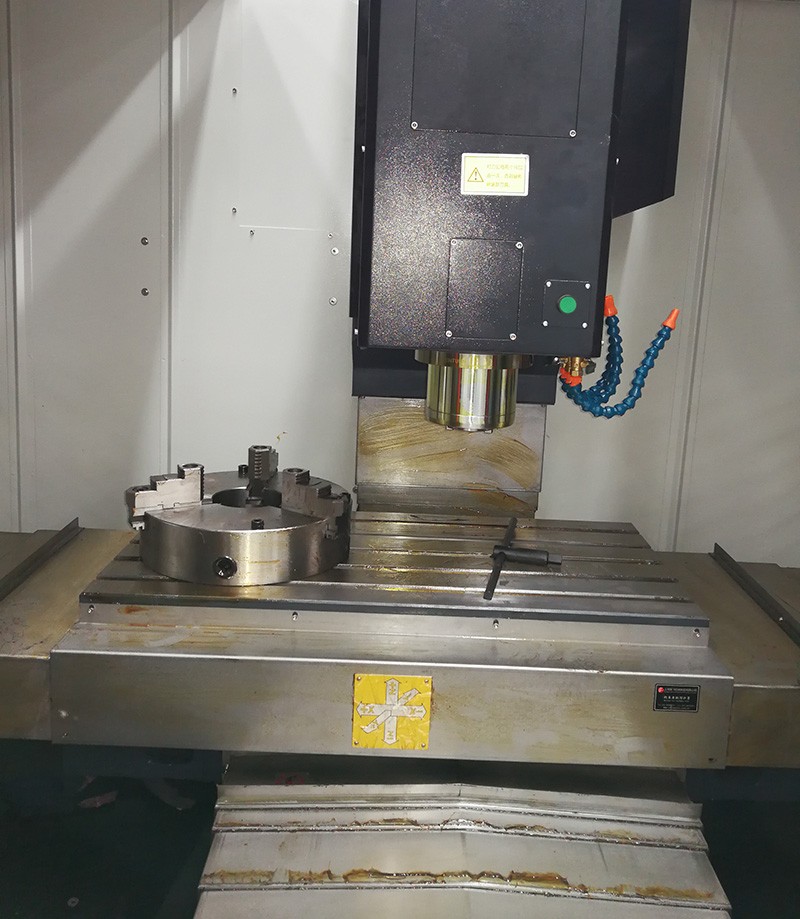

850L 3 Axis Milling Machine Vertical Machining Center With Mitsubishi System
台业TY850L 3轴加工中心
Taiye 850L vertical machining center is is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on
台业 TY-850立式加工中心被广泛应用于生产汽车零部件、医疗器械以及各种注塑模具、吹塑模具、压铸模具、汽车LED模具、玩具模具等
技术参数 Parameters
MODEL | 850L (1 hard rail 2 linear rail guide ) | UNIT |

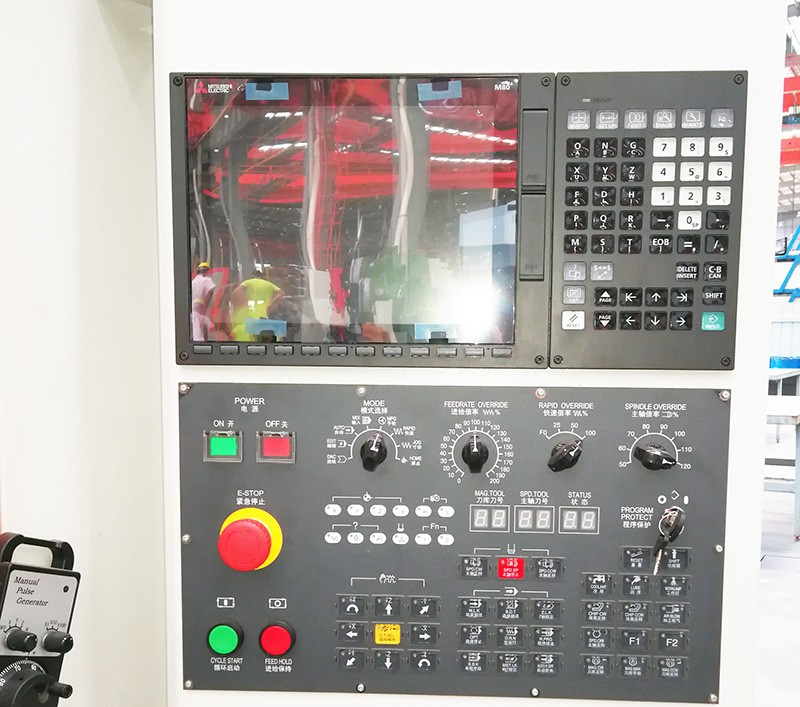

System 系统 | Mitsubishi M80 |
|
Worktable 工作台尺寸 | 500 X 1000 | mm |
X\Y\Z Axis Travel （X\Y\Z轴行程） | 800\500\500 | mm |
Spindle nose to table (MM) 主轴鼻端至工作台距离 | 110-610 | mm |
Spindle center to column surface distance rail (MM) 主轴中心至立柱面距离 | 560 | mm |
Maximum table load (KG) 工作台负载 | 600 | Kg |
T-slot(slot number×width×pitch) (MM) U-T型槽尺寸 | 5-18-90 | mm |
X/Y/Z Axis fast shift speed X/Y/Z轴快速移动速度 | 36\36\24 | m/min |
X/Y/Z Cutting feed rate （X/Y/Z切削进给率） | 6000 | mm/min |
3 Axis screw specifications 三轴丝杆规格 | 4012 | mm |
X Axis specifications X轴规格 | MSA35LA | mm |
Y Axis specifications Y轴规格 | MSA45LA | mm |
Positioning accuracy (MM) 定位精度 | ±0.01 | mm |
Repeat accuracy (MM) 重复定位精度 | ±0.01 | mm |
Max spindle speed (RPM) 主轴转速 | 10000 | rpm |
Spindle taper 主轴锥孔 | BT40/150 | mm |
Max tool Number 刀库 | 24T ATC | Pcs |
Spindle motor torque 主轴电机功率 | 5.5 KW / 7.5 HP | kw/hp |
X/Y/Z Axis Servo Motor 3轴伺服电机 | 13.7-47 | nm |
Air pressure 气压 | 6 | Kg/cm² |
Power 总功率 | 22 | KW |
Dimension 机床尺寸 | 3000*2400*2700 | mm |
Weight 机床重量 | 5500 | Kg |
Spindle 主轴 | Taiwan Royal / KENTURN | |
Screw 丝杆 | Taiwan PMI/ HIWIN | |
Knife cylinder 打刀缸 | Taiwan Shang product / Hao Cheng | |
Bearing 轴承 | Japanese NSK | |
Coupling 联轴器 | Germany R+W | |
Electrical distribution box 电器 | Schneider | |
ATC type 刀库类型 | Robot tool magazine 机械手刀库 | |
1) Simple structure in linear type ,easy in installation and maintation.
结构简单，呈直线型，安装和维护简便
2) world famous brand components parts.
知名品牌的零部件
3) Running in a high automatization and intellectualization,no pollution
在高度自动化和智能化的环境中运行，无污染
Name: Guide Screw 丝杆
Brand: HIWIN /PMI
Original: Taiwan
Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.
Name: Linear Guide Rail 线轨
Brand: HIWIN
Original: Taiwan
X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail.
Name: Spindle主轴
Brand: KENTURN / ROYAL
Original: Taiwan
Taiwan KENTURN / ROYAL high precision Spindlewith standard speed up to 8000rmp
Name: Bearing 轴承
Brand: FAG or NSKName: ATC 刀库
Brand: HDW or OKADA
Original: Taiwan
Taiwan HDW or OKADA disc type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds
Name: Alloy cast iron of the machine body
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
