850L 2 Linear And One Hard Line Vertical Machining Center With Mitsubishi System

BrandTAIYE
Product originHuzhou CHINA
Delivery time30 Days After Order Confirm
Supply capacity30 Sets Per Month

Taiye vertical machining center is is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and so on Taiye machinery company, more than 200 high tech talents and more than 2000 square meter production workshop and more than 15 years machine tool production R&D experience, our machine tool use taiye intelligent operation system, easy to use, each worker can operate 3 to 4 sets machine tool at the same time. Taiye machine tool, hot sale in southeast Asia, North Africa, south American, China mainland. our customer include JMA aluminum company, Fenglu aluminum company, Jiangshun group, Xingfa aluminum company, etc.

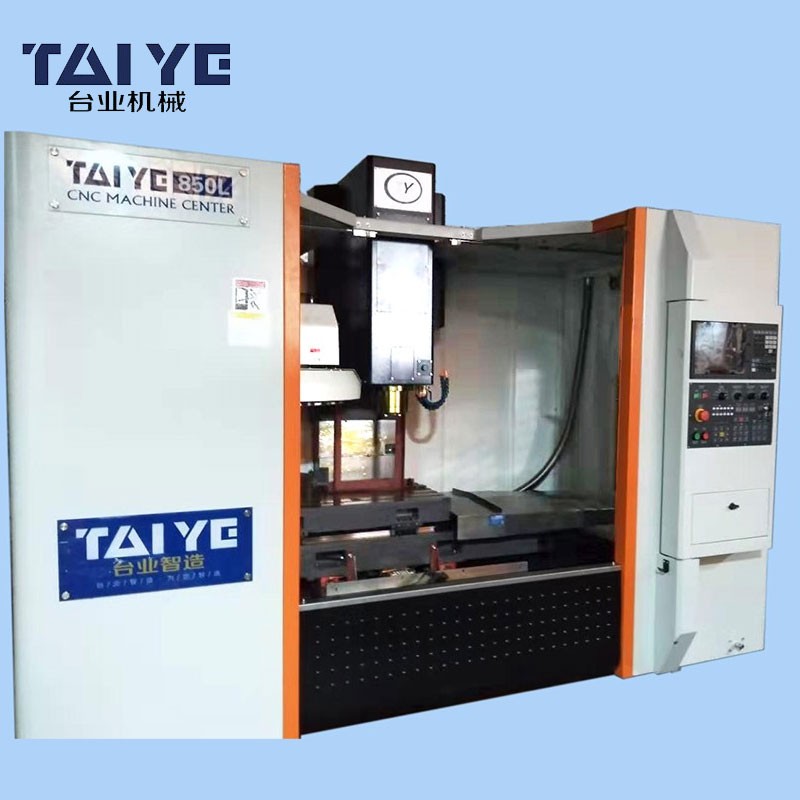

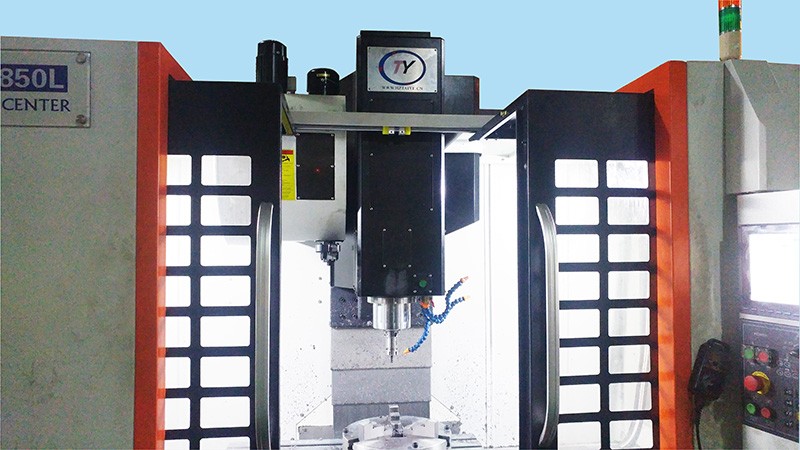

850L 2 Linear And One Hard Line Vertical Machining Center With Mitsubishi System

TY850L / 2线一硬3轴加工中心

TY850L立式加工中心基本配置为X、Y、Z三轴联动，主电机为伺服电机，可进行各种铣削、镗孔、钻孔、攻丝和各种曲面加工。该机有多种固定循环，如端铣、钻深孔、钻台阶孔、锪孔、铰孔、镗孔、反镗等功能供用户选用，该机换刀、加工等均由预设程序自动控制，且换刀过程中伴随有主轴中心吹气，以保持刀柄及主轴锥孔清洁，自动化程度高，适应面广，可在一次装夹中完成多道工序的加工。

The basic configuration of the TY850L VMC is X, Y, Z three-axis linkage, and the main motor is a servo motor. It can perform various milling, boring, drilling, tapping and various curved surface processing. This machine has a variety of fixed cycles, such as end milling, deep hole drilling, step hole drilling, countersinking, reaming, boring, reverse boring and other functions for users to choose from. The machine's tool changing, processing, etc. are all automatically performed by preset programs. Control, and the tool change process is accompanied by air blowing from the center of the spindle to keep the tool handle and spindle taper hole clean. It has a high degree of automation and a wide range of adaptability. It can complete multiple processes in one clamping.

CNC milling machine

MODEL	850L (1 hard rail 2 linear rail guide )	UNIT

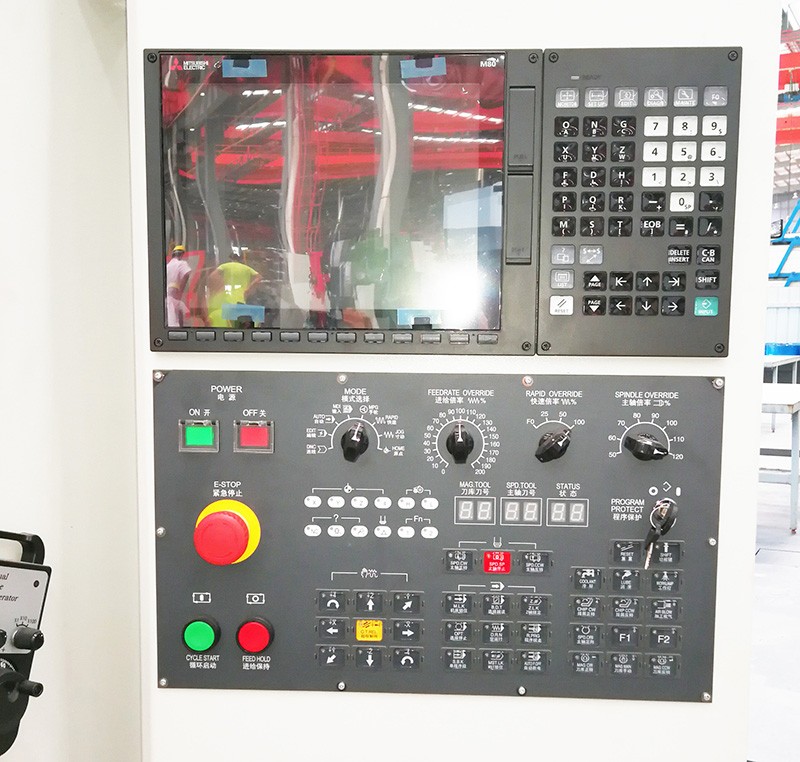

System 系统	Mitsubishi M80
Worktable 工作台尺寸	500 X 1000	mm
X\Y\Z Axis Travel （X\Y\Z轴行程）	800\500\500	mm
Spindle nose to table (MM) 主轴鼻端至工作台距离	110-610	mm
Spindle center to column surface distance rail (MM) 主轴中心至立柱面距离	560	mm
Maximum table load (KG) 工作台负载	600	Kg
T-slot(slot number×width×pitch) (MM) U-T型槽尺寸	5-18-90	mm
X/Y/Z Axis fast shift speed X/Y/Z轴快速移动速度	36\36\24	m/min
X/Y/Z Cutting feed rate （X/Y/Z切削进给率）	6000	mm/min
3 Axis screw specifications 三轴丝杆规格	4012	mm
X Axis specifications X轴规格	MSA35LA	mm
Y Axis specifications Y轴规格	MSA45LA	mm
Positioning accuracy (MM) 定位精度	±0.01	mm
Repeat accuracy (MM) 重复定位精度	±0.01	mm
Max spindle speed (RPM) 主轴转速	10000	rpm
Spindle taper 主轴锥孔	BT40/150	mm
Max tool Number 刀库	24T ATC	Pcs
Spindle motor torque 主轴电机功率	5.5 KW / 7.5 HP	kw/hp
X/Y/Z Axis Servo Motor 3轴伺服电机	13.7-47	nm
Air pressure 气压	6	Kg/cm²
Power 总功率	22	KW
Dimension 机床尺寸	300024002700	mm
Weight 机床重量	5500	Kg
Spindle 主轴	Taiwan Royal / KENTURN
Screw 丝杆	Taiwan PMI/ HIWIN
Knife cylinder 打刀缸	Taiwan Shang product / Hao Cheng
Bearing 轴承	Japanese NSK
Coupling 联轴器	Germany R+W
Electrical distribution box 电器	Schneider
ATC type 刀库类型	Robot tool magazine 机械手刀库

Main Features
Name: Guide Screw
Brand: HIWIN /PMI
Original: Taiwan

 Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.
Machine Parts
Name: Linear Guide Rail
Brand: HIWIN
Original: Taiwan

X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.



Main Features
Name: Spindle
Brand: KENTURN / ROYAL
Original: Taiwan

Taiwan KENTURN / ROYAL high precision Spindlewith standard speed up to 8000rmp
Main Features
Name: Bearing
Brand: FAG or NSK

Germany FAG or Japanese NSK cylindrical roller bearings are high-rigid and can support high radial loads, and because of the cage, they are more suitable for high speeds than full load designs.
Main Features
Name: ATC
Brand: HDW or OKADA
Original: Taiwan
HDW or OKADA disc type or bucket type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds
Machine Body
Name: Alloy cast iron of the machine body

The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body

Packing & Delivery

Packing Details : general packing for seashipping

Delivery Details : 30 days after order confirm

Tags:

How About Warranty?
We Provide One Year Warranty And Free Component In Guarantee Time
What About The MOQ?
MOQ is one sets.
Can You Provide Customzied Machines?
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
What Is The Advantage About Your Machine Tools ?
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
How Can I Choose The Most Suitable Machines ?
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Where Is Our Factory? How Can I Visit There?
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
