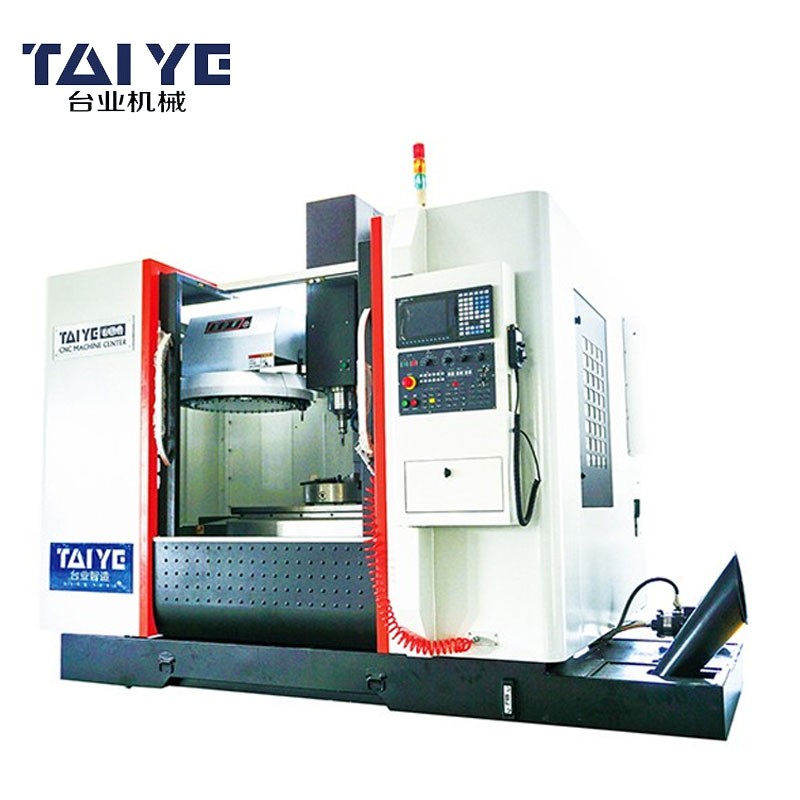

1270L 3 Axis Metal Processing Vertical milling machine Center
The 1270L vertical milling machine center can be milled, bored, drilled, expanded, reamed, tapped, and other multi-process processing.
The milling machine center are use the non-programming intelligent software which is developed and created by Taiye company, you do not need to programming and professional skills, our equipment is easy to operate with fully graphical interface.
Parameter for Taiye 1270L 3 axis milling machine center
| Table size (MM) | 1400*700 |
| X-axis travel (MM) | 1200 |
| Y-axis travel (MM) | 700 |
| Z-axis travel (MM) | 600 |
| X/Y/Z axis motor power | 3/ 3 / 4.5 KW |
| Maximum table load (KG) | 1000 |
| T-slot | 5-18-122 MM |
| Spindle type | BT50/155 |
| spindle speed | 8000 RPM |
| Spindle power (KW) | 70/15 KW |
| Rapid traverse (X/Y/Z) (mm/min) | 18000 |
| Cutting feed (mm/min) | 2-8000 |
| Spindle nose to table (MM) | 87-687 |
| Spindle center to column surface distance rail (MM) | 785 |
| Positioning accuracy (MM) | ±0.005 |
| Repeat accuracy (MM) | ±0.003 |
| Dimensions (MM) | 34500*2950*2750 |
| Machine weight (KG) | 7500 |
1) Simple structure in linear type ,easy in installation and maintation.
2) world famous brand components parts.
3) Running in a high automatization and intellectualization,no pollution

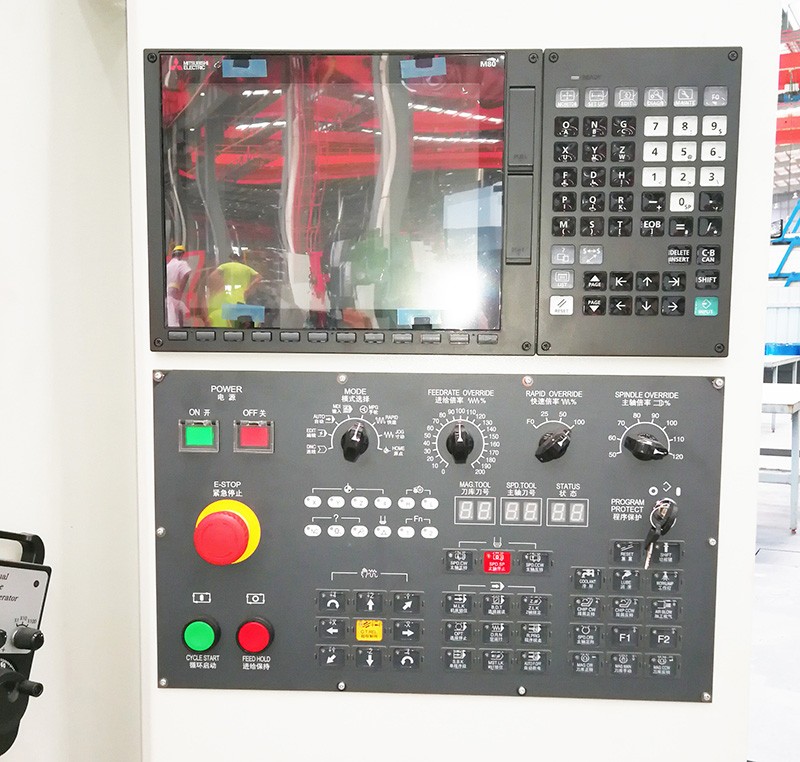

| 1.The CNC system: Mitsubishi M80 | ||||||||
| 2.The high quality castings: Resin sand casting | ||||||||
| 3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||

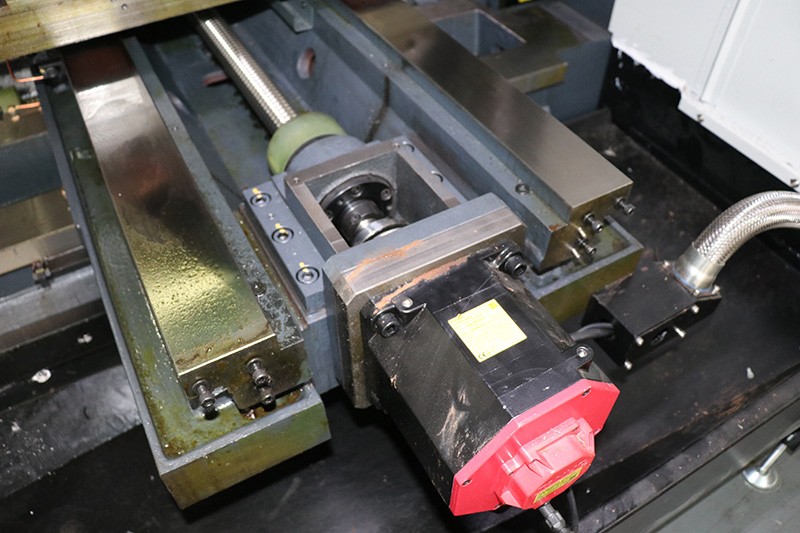

| 4.The screw: TAIWAN PMI/ HIWIN | ||||||||
| 5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
| 6.The unclamping cylinder: Taiwan Shang product | ||||||||
| 7.Coupling ：Germany R+W | ||||||||
| 8.The bearing: Japan NSK | ||||||||
| 9.Crawler chip conveyor | ||||||||
| 10.Electrical equipment: Schneider | ||||||||
| 12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
Product Show
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
