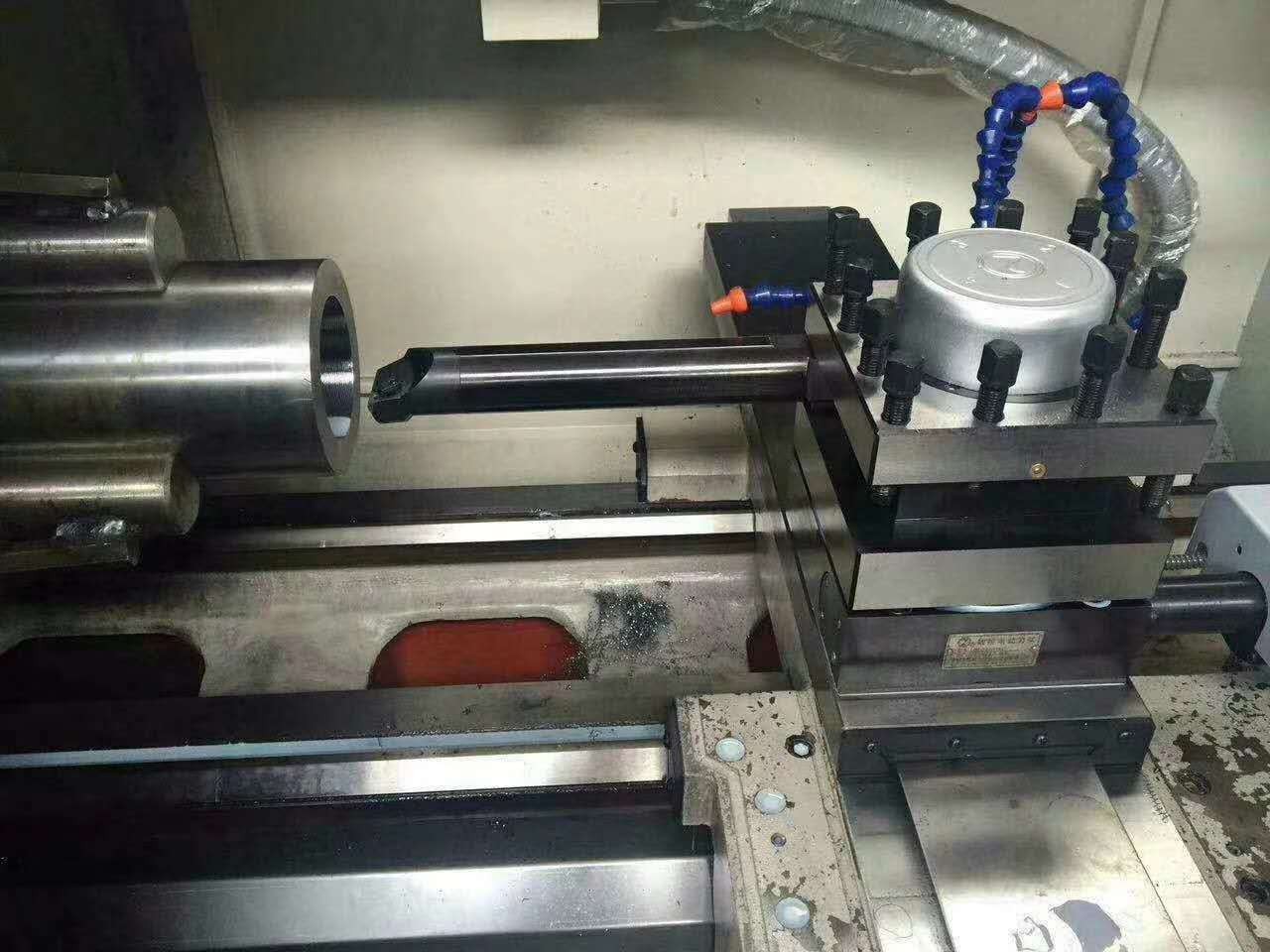

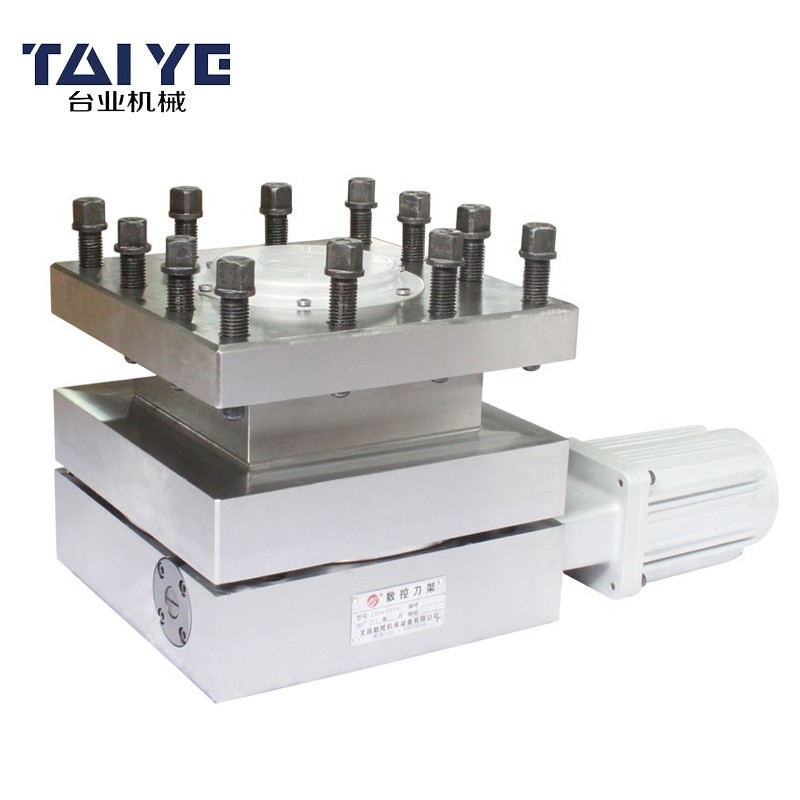

1-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.
2-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
3-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
4-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
5-The spindle system is high in rigidity and accuracy.
After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines

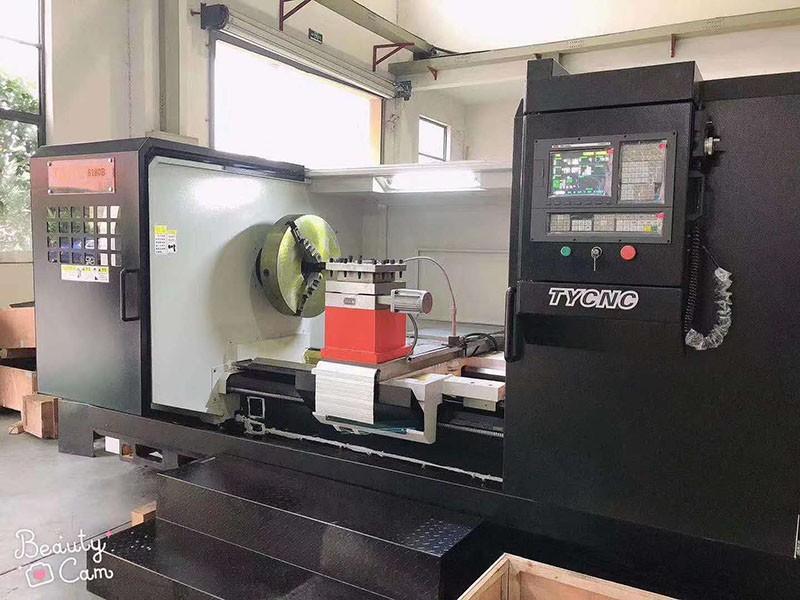

| Style： | CNC Lathe Special For Aluminum Extrusion Mold | |||
| Condition: | New | |||
| Type: | TY6180B typical 3 meter | |||
| CNC or Not: | CNC | |||
| Automatic Grade: | Automatic | |||
| Max. Swing Diameter: | 820 mm (processing 250-600 Mold) | |||
| MAX processing dia in Tool holder | 540 MM | |||
| distances between lathe centre | 2200 MM | |||
| Max. processing length(mm) | 2000 MM | |||
| jaw chuck Type: | φ325 | |||
| Main spindle and taper hole | A2-11 | |||
| Main spindle speed | two Class manual speed change 0-90 RPM 90-400 RPM | |||
| Main spindle motor Power | 22 KW (frequency conversion) | |||
| spindle bore dia. (MM): | Φ112 /120 1:20 | |||
| barstock Dia:(MM) | Φ100 | |||
| X/Z Axis fast feeding speed (M/Min) | 4m/8m | |||
| X Axis screw type | GQ3210-P3 | |||
| Z Axis screw type | GQ6310-P4 | |||
| X/Z Axis Connection method | X: direct ( 10N/M 2.3KW) Z: direct (23 N /M 4.7KW) | |||
| X Axis travel: | 410 MM | |||
| Z Axis travel: | 2100 MM | |||
| Processing accucy | GB/T8324.1-96 IT6-IT7 Ra≤1.6 | |||
| Place of Origin: | Zhejiang, China (Mainland) | |||
| Voltage: | Customer's Requirement | |||
| slideway width | 600 MM (bed and foot all in one casting) | |||
| Weight: | 5000kg | |||
| After-sales Service Provided: | Engineers available to service machinery overseas | |||
| tail stock Dia (MM) | Φ100 | |||
| tail stock center travel: | 250 mm | |||
| tail stock sleeve taper: | MT5 | |||
| install way | Horizontal installation | |||
| Standard configurations | Optional configurations | |||
| CNC system: | syntec intelligent cnc controller system 10A | |||
| Machine Dimension | 4200*1200*1650 | |||
| remarks: | Heavy cutting, drilling of parts and rough finishing | |||
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
