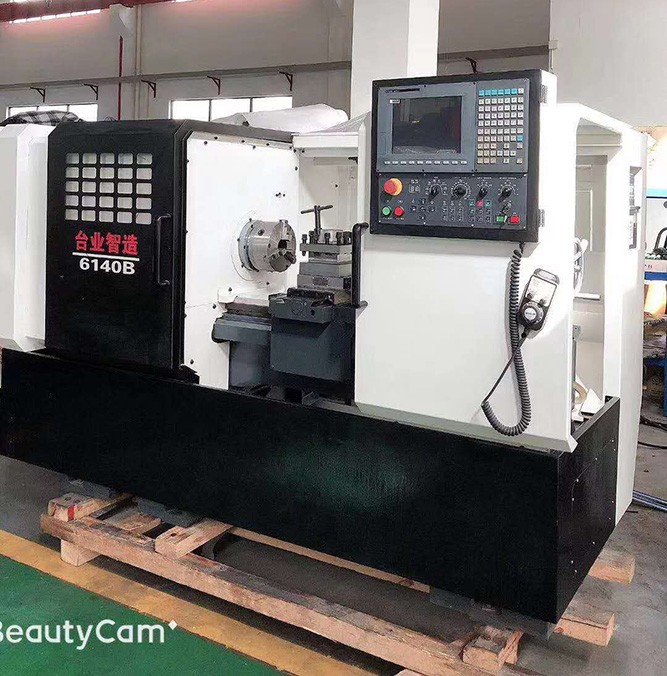

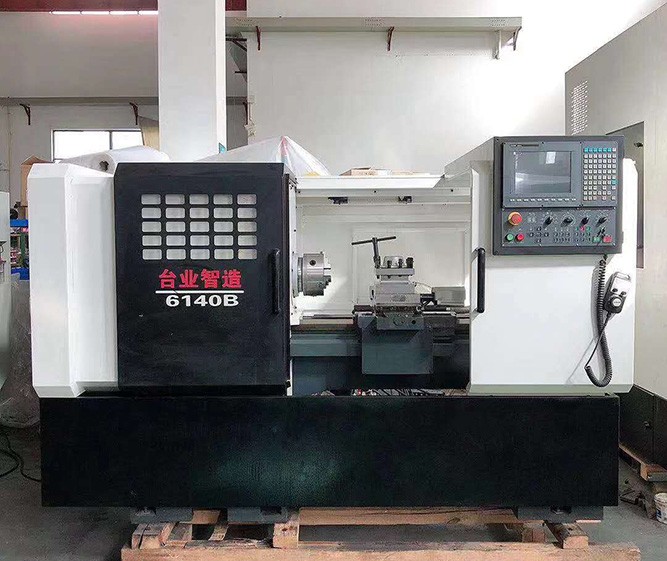

6140 High Speed Metal Machining Horizontal CNC Lathe Machine
1. No programming required. Our company provides professional automatic programming software developed by ourselves.
2, no need to know the workmanship. It is easy to learn, and the use of the workmanship is no longer annoying for recruitment.
3, the size and accuracy of the appearance have exceeded the export standard, and the same mold can achieve the mouth wild.

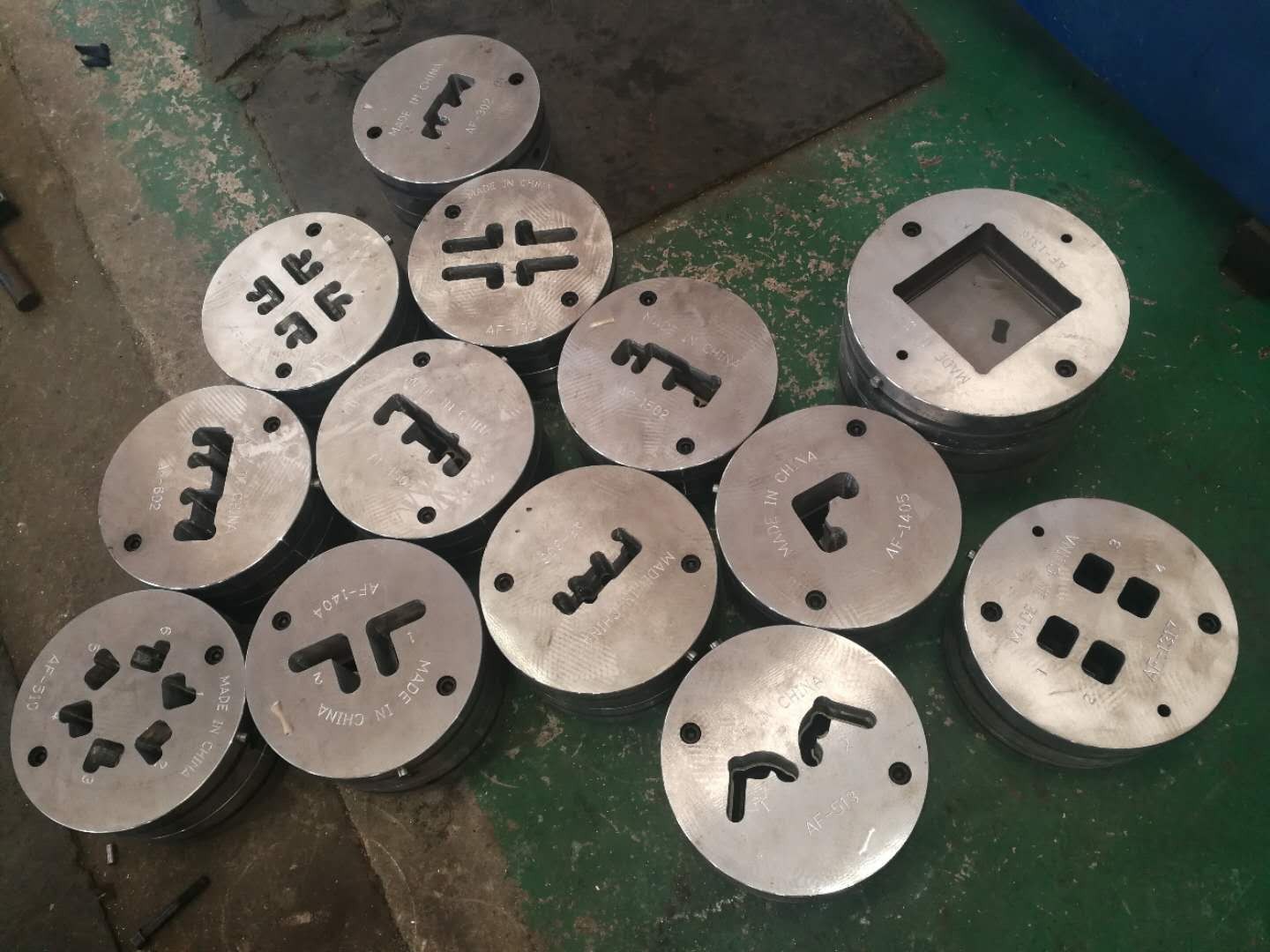

4, high cost effective. Specially designed and developed for aluminum extrusion dies, the professionalism is extremely strong, and the accessories are all in the same grade as the machining center.
5, work efficiency is high. One person can easily operate three machines, and can perform data input of subsequent work-pieces under the muti-page screen without stopping the machine. ¢180 and below mold monthly capacity of 1200-1300 sets. The labor intensity of the lathe is greatly reduced and the labor cost is also reduced. The semi-closed protective sheet metal also improves the mental outlook of the lathe.
| Type: | TAIYE TY6140B horizon CNC lathe | ||
| CNC or Not: | CNC | ||
| Max. Swing Dia: | 420 mm | ||
| Max. processing Diameter(mm) | 230 MM | ||
| Max. processing length | 750 (optional) | ||
| Place of Origin | Zhejiang, China (Mainland) | ||
| Brand Name | TAIYE | ||
| Dimension(L*W*H): | 2100*1600*1400mm | ||
| Weight: | 1800 KG | ||
| Max swing over bed: | 500mm | ||
| max. work piece length: | 750/1000/1500/2000mm | ||
| X Axis screw type | GQ2504-P3 | ||
| Z Axis screw type | GQ5010-P4 | ||
| X/Z Axis connect type | X: Direct (7.7N/M)/2000 Z: direct: (10N/M)/1500 | ||
| spindle taper: | 70/1:20 （Metric） | ||
| Spindle Power | 11 kw | ||
| Bar diameter | Φ 78 | ||
| chuck size | D250 | ||
| spindle speed range: (rpm/min) | 2500 r/min | ||
| Sleeve diameter | Φ60 | ||
| tail stock center travel: | 120mm | ||
| tail stock sleeve taper: | MT4 | ||
| Standard configurations | Optional configurations | ||
| CNC system: | Taiwanese SYNTEC system | ||
| Power: | 11 kw |
Packing Details : general packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
