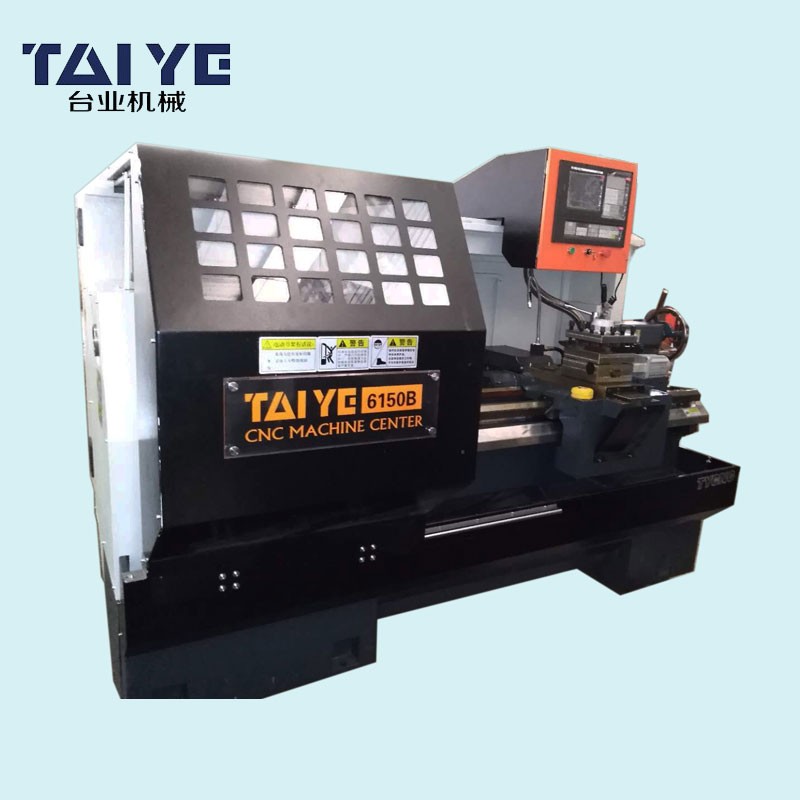

43" X 30" Flat Bed Turning Machining CNC Lathe
Machine Features:
1-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

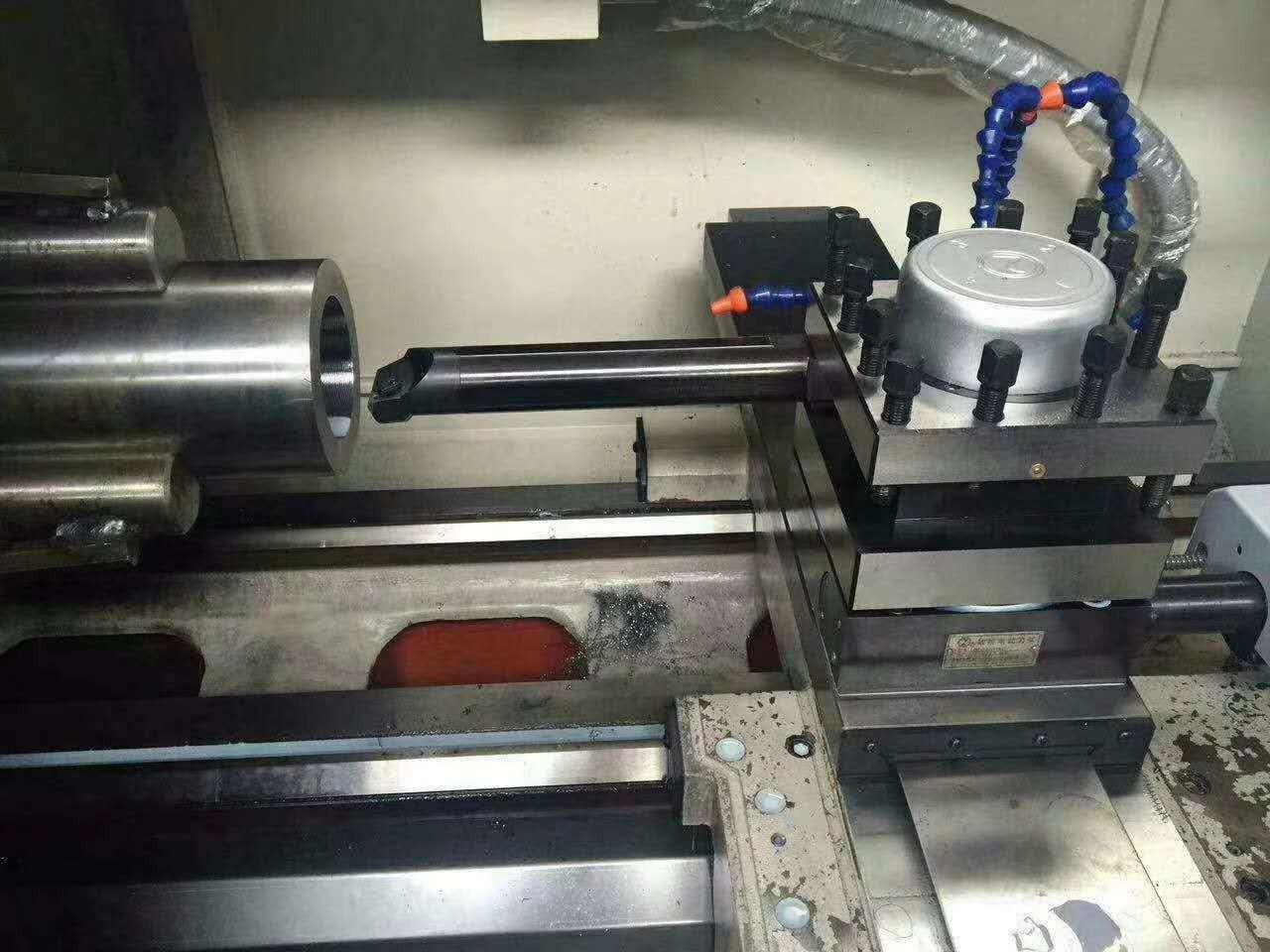

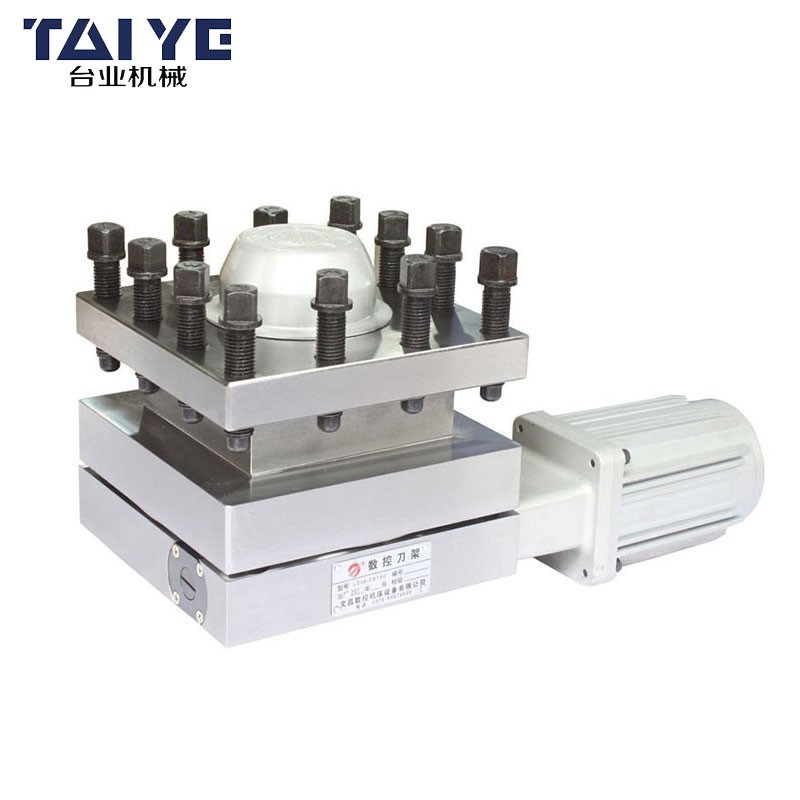

2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.
3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4-The spindle system is high in rigidity and accuracy.
5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines

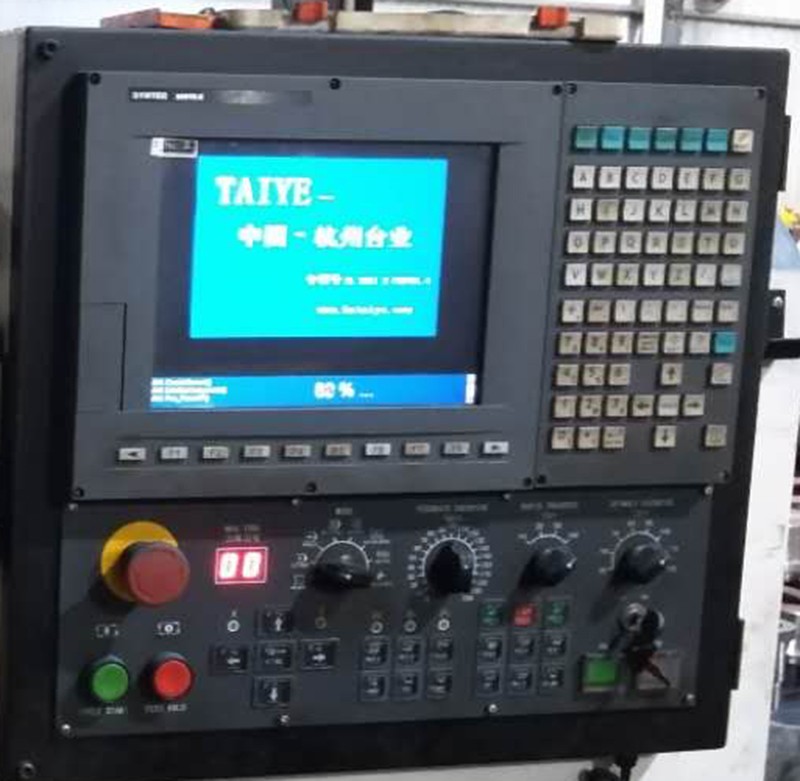

Control System: KND / SYNTEC taiye version Tool holder：Wenchang/ xinnan
Origin: China origin: China
| STYLE： | TY6150B | ||
| Condition: | New | ||
| Type: | TY6150B typical horizon | ||
| CNC or Not: | CNC | ||
| Automatic Grade: | Automatic | ||
| Max. Swing Diameter: | 500 mm | ||
| MAX processing dia in Tool holder | 290 MM | ||
| distances between lathe centre | 1000 MM | ||
| Max. processing length(mm) | 1000 MM | ||
| jaw chuck Type: | D 320 | ||
| Main spindle and taper hole | D8 | ||
| Main spindle speed | Three Class manual speed change 60 - 190 RPM 220 -650 RPM 700 - 1600 RPM | ||
| Main spindle motor Power | 7.5 KW (frequency conversion) | ||
| spindle bore dia. (MM): | Φ82 | ||
| barstock Dia:(MM) | Φ78 | ||
| X Axis screw type | G Q2504-P3 | ||
| Z Axis screw type | G Q5010-P4 | ||
| X/Z Axis Connection method | X: direct ( 7.7 N/M 2.0KW) Z: direct (10 N /M 1.5KW) | ||
| Place of Origin: | Zhejiang, China (Mainland) | ||
| Voltage: | Customer's Requirement | ||
| slideway width | 390 MM | ||
| Weight: | 2500kg | ||
| After-sales Service Provided: | Engineers available to service machinery overseas | ||
| tail stock Dia (MM) | Φ 75 | ||
| tail stock center travel: | 150mm | ||
| tail stock sleeve taper: | MT5 | ||
| install way | Horizontal installation | ||
| Standard configurations | Optional configurations | ||
| CNC system: | GSK / KND | ||
| Machine Dimension | 2500*1100*1600 MM | ||
| remarks: | Heavy cutting, drilling of parts and rough finishing |
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
