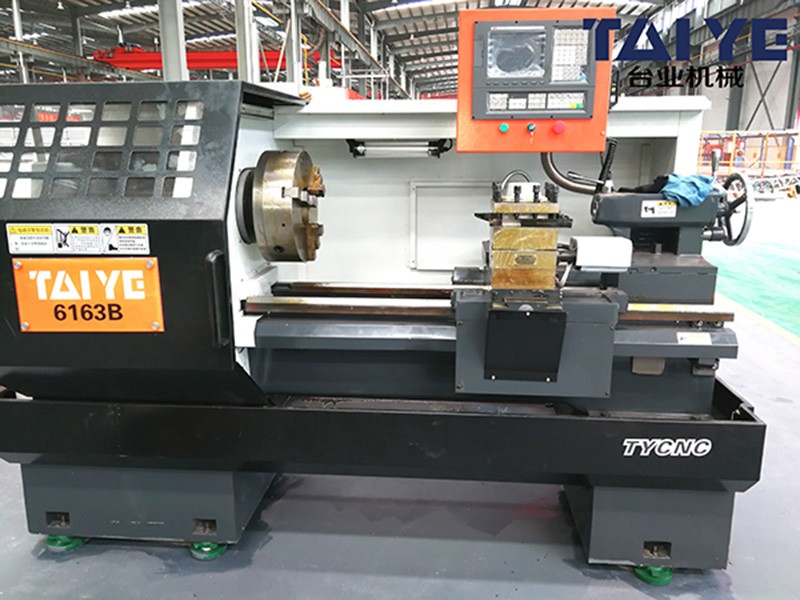

6163 Fool -like Type Flat Bed CNC Lathe Special For Aluminum Extrusion Mold Dies
1-Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.

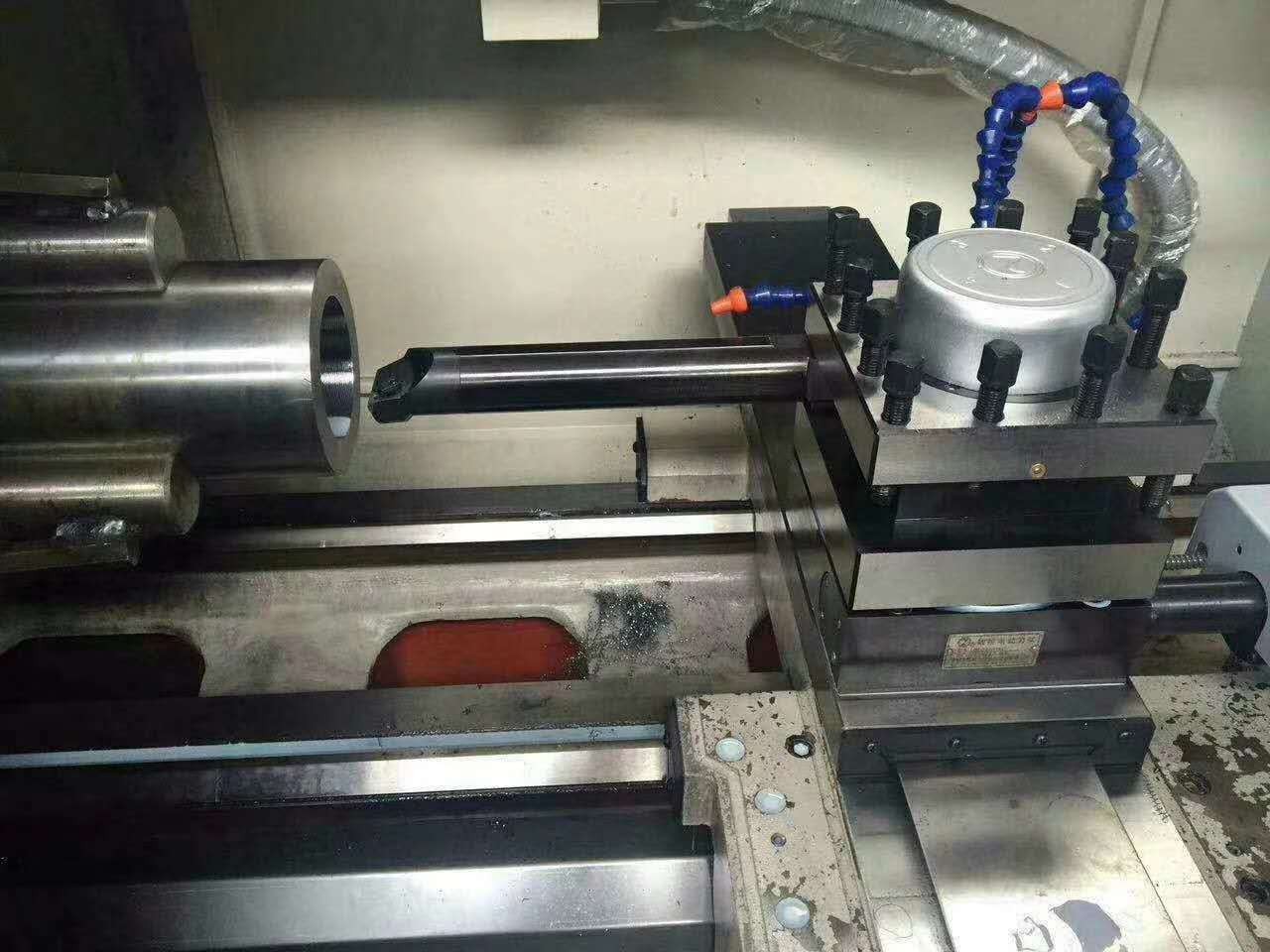

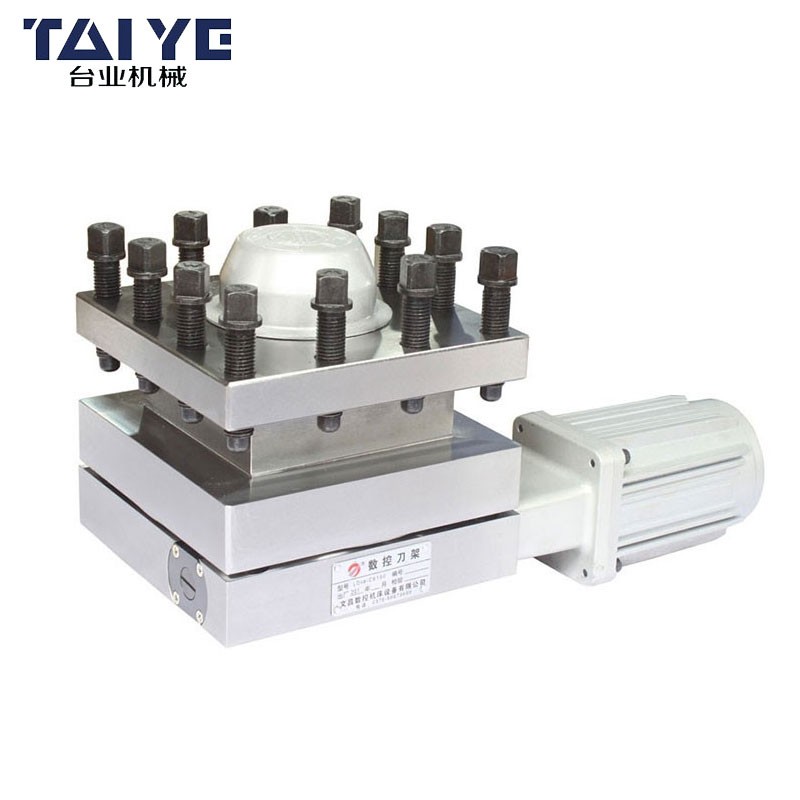

2-Either vertical 4-station or horizontal 6 and 8-station tool post as well as gang type tool post can be selected.The post is located on precision contrite gears with a high repeated positioning accuracy.
3-Both chuck and tailstock are available with hydraulic or manual or pneumatic type.
4-The spindle system is high in rigidity and accuracy.
5-The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines
Type: | 6163 Fool -like Type Flat Bed CNC Lathe Special For Aluminum Extrusion Mold Dies |
CNC type: | KND / SYNTEC (Taiye ver.） |
Automatic Grade: | Automatic |
Max. Swing Diameter: | ￠630 |
Max processing dia. in Tool holder | ￠430 |
distances between lathe centre | 1000 MM |
Max. processing length(mm) | 1000 MM |
jaw chuck Type: | D400 |
Main spindle and taper hole | D8 |
Main spindle speed | Three Class manual speed change60 -190 RPM /220-650 RPM / 700-1600 RPM |
Main spindle motor Power | 7.5 KW |
spindle bore dia. (MM): | ￠100 |
barstock Dia:(MM) | ￠95 |
X Axis screw type | G Q2504-P3 |
Y Axis screw type | G Q5010-P4 |
X/Z Axis Connection method | X: direct ( 7.7 N/M 2 KW) |
Guideway width | 550 MM |
tail stock Dia (MM) | ￠100 |
tail stock center travel: | 250 MM |
tail stock sleeve taper: | MT 5 |
Standard configurations | |
Machine Dimension | 2500 X1100X1600 |
Weight: | 2400 KG |
remarks: | Heavy cutting, drilling of parts and rough finishing |
After-sales Service Provided: | Engineers available to service machinery overseas |
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.

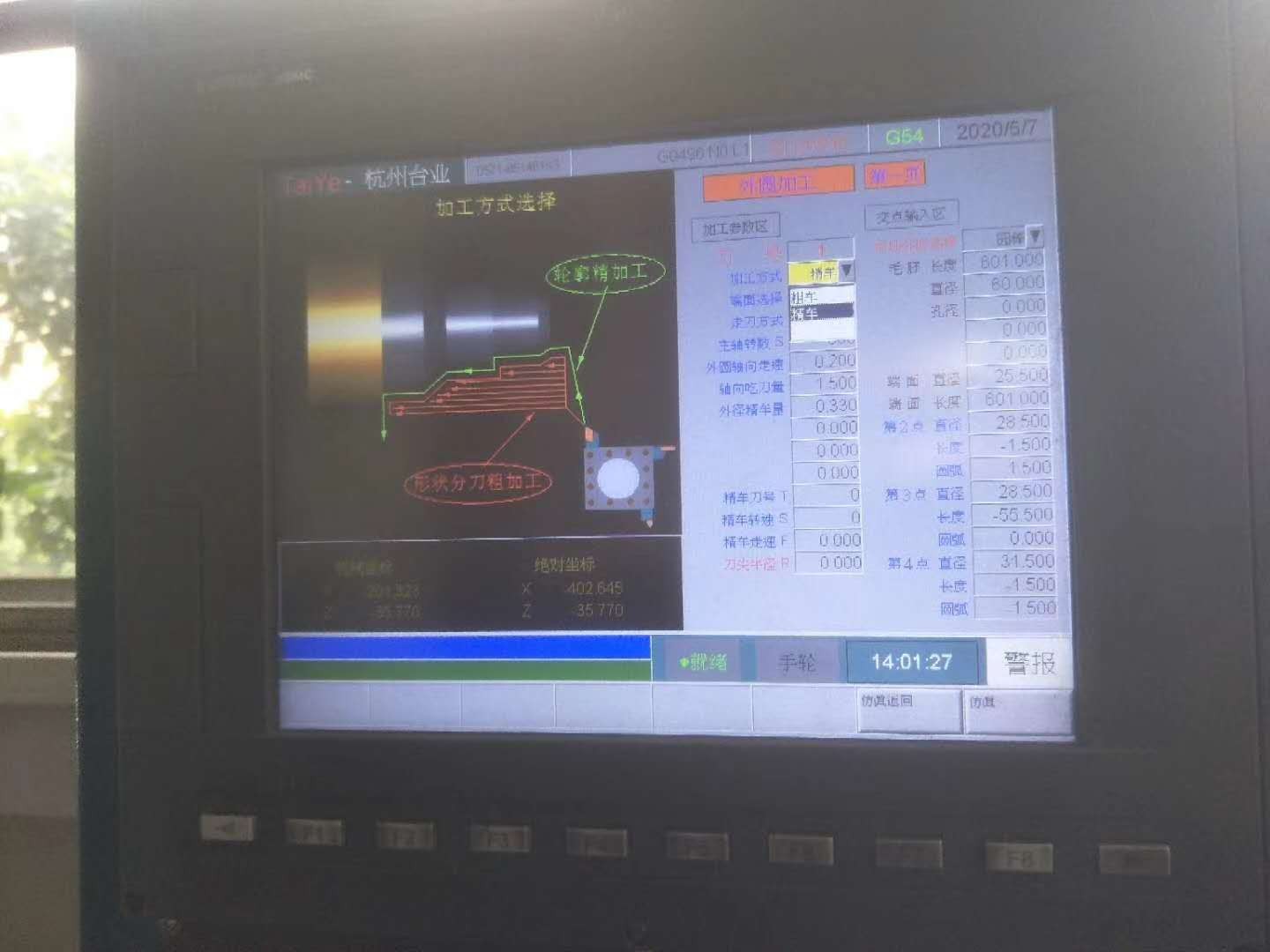

Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
