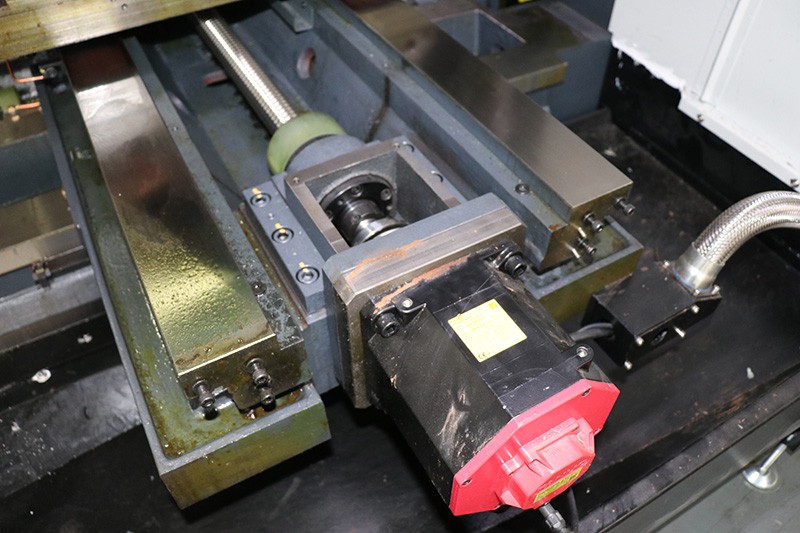

VMC1270 3 Axis CNC Milling Machine Center-CNC Vertical Machining Center For Aluminium Extursion dies.
Machine tools are called industrial mother machines, "machines that make machines", and are the core production tools of the manufacturing industry. All industrial production cannot be separated from the support of machine tools. Especially in the aluminium extrusion die industry, CNC machine tools have become the mainstream of aluminium extrusion die production at home and abroad, especially CNC lathes, CNC milling machines, CNC machining centers, EDM and other basic equipment for aluminium extrusion die production, which have a broad market at home and abroad. At the same time, under the demand for new technologies and high-precision improvements in aluminium extrusion dies, such as 5-axis machining centers, 7-axis machining centers and other high-tech content and high-tech added value high-end CNC machine tools, the market also has sufficient development.
VMC1270 CNC Milling Machine Center-CNC Vertical Machining Center For Aluminium Extrusion dies is designed and developed by Taiye Company for large diameter aluminium extrusion dies. the Table size as 1400*700 with BT50 Spindle, Can be selected Mitsubishi system, FANUC system, Taiye SYNTEC system, etc according to customer needs.
VMC1270 CNC Milling Machine Center-CNC Vertical Machining Center For Aluminium Extrusion dies Parameter
| Table size (MM) | 1400*700 |
| X-axis travel (MM) | 1200 |
| Y-axis travel (MM) | 700 |
| Z-axis travel (MM) | 650 |
| X/Y/Z axis motor power | 3/ 3 / 4.5 KW |
| Maximum table load (KG) | 1100 |
| T-slot | 5-18-120 MM |
| Spindle type | BT50/155 |
| spindle speed | 8000 RPM |
| Spindle power (KW) | 70/11 KW |
| Rapid traverse (X/Y/Z) (mm/min) | 18000 |
| Cutting feed (mm/min) | 2-8000 |
| Spindle nose to table (MM) | 110 - 760 |
| Spindle center to column surface distance rail (MM) | 760 |
| Positioning accuracy (MM) | ±0.005 |
| Repeat accuracy (MM) | ±0.003 |
| Dimensions (MM) | 3600*3000*2750 |
| Machine weight (KG) | 8000 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) world famous brand components parts.
3) Running in a high automatization and intellectualization,no pollution
| 1.The CNC system: Mitsubishi M80 | ||||||||
| 2.The high quality castings: Resin sand casting | ||||||||
| 3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||
| 4.The screw: TAIWAN PMI/ HIWIN | ||||||||
| 5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
| 6.The unclamping cylinder: Taiwan Shang product | ||||||||
| 7.Coupling ：Germany R+W | ||||||||
| 8.The bearing: Japan NSK | ||||||||
| 9.Crawler chip conveyor | ||||||||
| 10.Electrical equipment: Schneider | ||||||||
| 11.The Internal protection: Total protection | ||||||||
| 12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
Product Show:
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
