CX630六轴五联动车铣加工中心

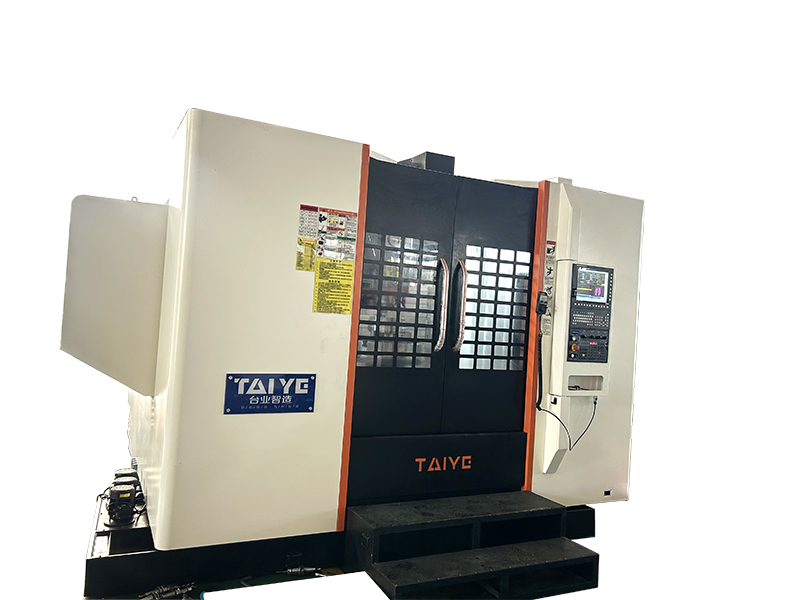

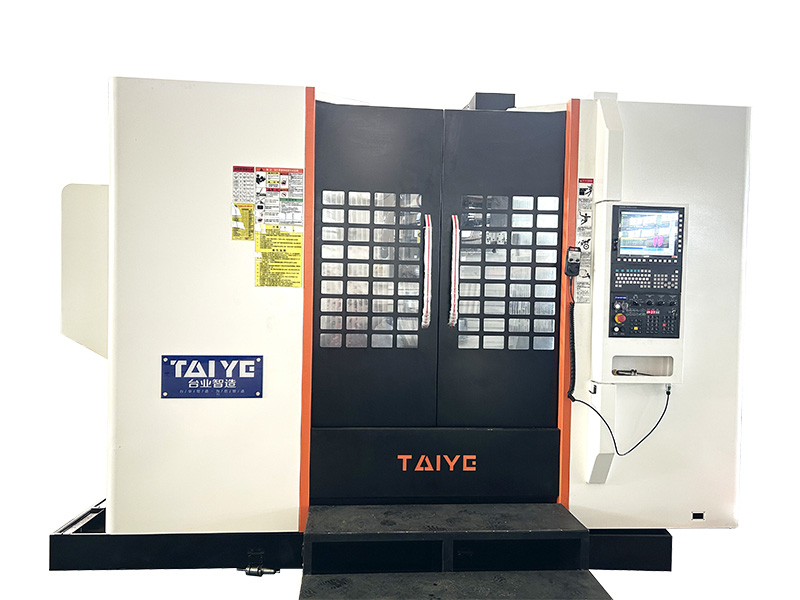

Taiye 6-axis Machining Center for Aluminium extrusion dies
机床简介 Taiye 6 axis machine center overview

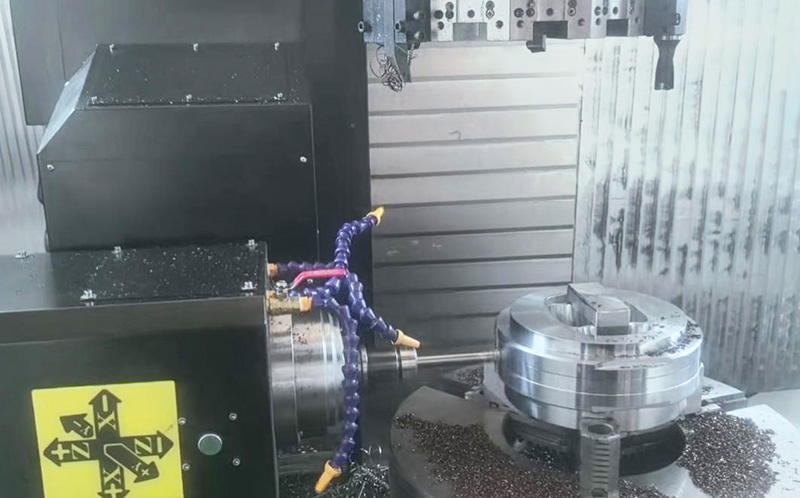

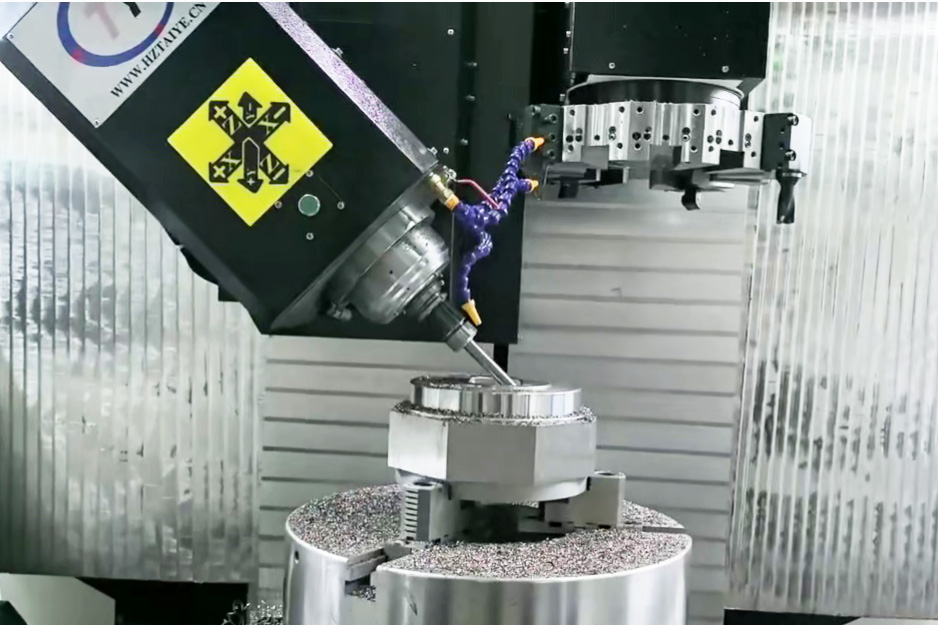

The Taiye 6-axis Machining Center is a high-end, multi-tasking CNC machine tool that integrates both turning and milling capabilities. Featuring 6 axes of motion—five of which are capable of simultaneous, synchronized control—this machine enables the efficient and precise multi-sided, multi-angle machining of complex components in a single setup.
Compared to traditional 3-axis machine centers or standalone milling machines, this equipment transcends the limitations of conventional machining dimensions. It not only possesses the spatial surface processing capabilities typical of 5-axis machine centers but also incorporates turning functionality, allowing it to flexibly address the machining requirements of rotational parts. This "complete in one setup" approach significantly minimizes inter-process handling and cumulative positioning errors, thereby substantially enhancing both machining precision and production efficiency.
Widely utilized across sectors such as aerospace, shipbuilding, and automotive mold manufacturing, this equipment is particularly well-suited for the production of large-scale structural components and high-precision extrusion die cavities, serving as a pivotal asset for driving quality improvement and efficiency gains within the manufacturing industry.
标准配备Taiye 6 Axis machine center Standard Configuration
1． SYNTEC 5 Axis system (with RTPC tool tip following function)
SYNTEC-220TB-5(台湾新代)五轴数控系统（RTPC刀尖跟随功能）
2． Taiwan's Syntec integrated bus and integrated servo drive &motors
台湾新代一体化总线一体化伺服驱动器及电机
3． B-axis Germany high-precision and high-stability turntable
B轴德国进口高精度高稳定转台
4． C Axis: A-11 Direct drive spindle 15KW/850Nm （C轴/A-11直驱主轴/15KW/850NM）
5． 12-station servo hydraulic turret 12工位伺服液压刀塔
6． X/Y/Z1/Z2/B/C servo control & servo 12-station hydraulic turret
X、Y、Z1、Z2、B、C伺服控制+伺服12工位液压刀塔
7． Spindle constant temperature oil cooling system 主轴恒温水冷系统（±0.5℃）
8． BBT40—10000rpm High-torque, high-speed, heavy-duty electric spindle
BBT40—10000rpm大扭矩高速重载电主轴
9． Spindle direct-drive motor:22KW/12000 rpm, torque:75N/M
主轴直驱电机22KW-12000转，扭矩75N/M
10． Taiwan BT40-24 robot tool magazine台湾BT40—24位刀臂式刀库
11． Automatic lubrication assembly 自动润滑总承
12． Machine tool cleaning air gun 机床清理风枪
13． LED work light & LED alarm light LED工作灯及LED报警灯
14． Toolbox and anchor screws 工具箱及地脚螺丝
15． Mechanical, electrical, and operation manuals 机械、电气、操作说明书
16． Constant temperature air conditioning for electrical box 电气箱恒温空调
17． 3-axis sliding rail telescopic protective cover三轴滑轨伸缩护罩
18． Precison Tool Alignment instrument & 3D infrared measuring instrument
精密对刀仪+3D红外无线测量仪
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
