850 Vertical Machining CNC Lathe

BrandTAIYE
Product originHANGZHOU CHINA
Delivery time30 Days After Order Confirm
Supply capacity30 Sets Per Month

Taiye CNC lathe, speical use in heavy cutting, drilling of parts and rough finishing, CNC machining, metal cutting, turning machining, aluminum extrusion mold dies. Taiye machine company, have over 200 high tech talent and more than 20000 square meter production workshop and more than 15 years high performance CNC machine tool manufacture experience, service to customers with high rigidity, high stablity and high precison CNC machine tools. Taiye machine tool, hot sale in southeast Asia, North Africa, south American, China mainland. our customer include JMA aluminum company, Fenglu aluminum company, Jiangshun group, Xingfa aluminum company, etc. and give highly praised by our customers.

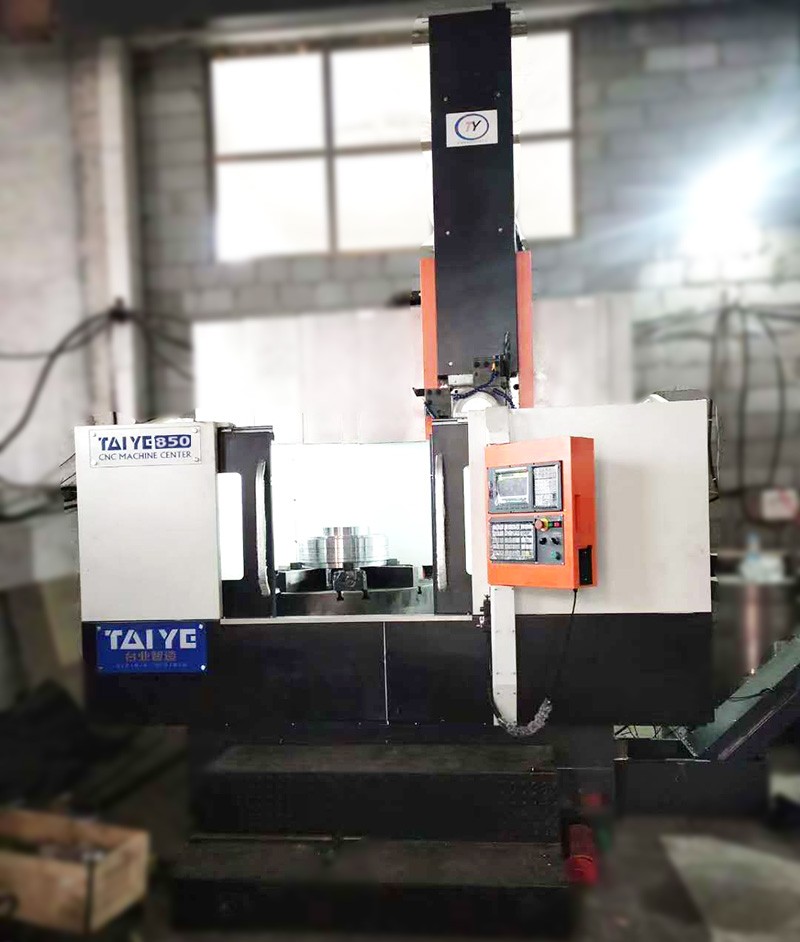

850 Vertical Machining CNC Lathe

Product introduction and use
This machine is an automatic CNC machining machine for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels. Processing of parts such as shells.

Taiye 850 vertical machining CNC lathe, max processing mold diameter to 800 mm, taiye fool like style operation, simple and easy to use, easy to use, saving training costs and labor costssuit for heavy cutting.

CNC lathe

Parameter

Specifications	Taiye 850 vertical CNC lathe
Max. turning diameter of workpiece	850 mm
Max.turning diameter	800 MM (disc type)
Vertical travel of tool post	700 mm
Horizontal travel of tool post	-50-700mm
Spindle model	A2-11
Spindle load	1000KG
Spindle speed range	50-800rpm,1:2.5 Speed ratio
Main motor power	30kw(Rated speed750)
X axis rapid feed traverse	15m/min
Z axis rapid feed traverse	12m/min
Cutting feed speed	0.1-5000 mm/min
X axs motor power/Torque	3.14 kW /20NM
Z axs motor power/Torque	3.14 kW /20NM brake
Tool post type	4 station electric tool post
Tool shank size	40×40mm
Chuck diameter	700mm（manual 4 jaw）
Positioning accuracy	±0.01mm
Repeat positioning accuracy	±0.005mm
Machine weight	≈8000 kg
Overall dimensions	2050x1800x3200 MM

vertical lathe

Packing & Delivery

Packing Details : general packing for sea shipping

Delivery Details : 30 days after order confirm

Tags:

How About Warranty?
We Provide One Year Warranty And Free Component In Guarantee Time
What About The MOQ?
MOQ is one sets.
Can You Provide Customzied Machines?
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
What Is The Advantage About Your Machine Tools ?
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
How Can I Choose The Most Suitable Machines ?
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Where Is Our Factory? How Can I Visit There?
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
