TY1250 Vertical CNC Lathe machine for Aluminum extrusion dies
Product introduction
Taiye TY 1250 vertical CNC lathe for aluminum extrusion dies , speical use in heavy cutting, drilling of extrusion die parts and rough finishing, this CNC machine tool can max processing 1250 MM extrusion dies and metal.
This Vertical CNC Lathe machine is an automatic CNC machining machine for machining the aluminum extrusion dies inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. This vertical CNC lathe are use Taiye fool-like operation system and high rigidity and stablity base machine, it is simply and easy to use, stable use, long life.
Taiye CNC vertical lathe does not require programming. Our company provides self-developed professional automatic programming software.
No lathe knowledge is required. Simple and easy to learn, the threshold for employment in aluminum extrusion dies companies is super low, and no longer has to worry about recruiting workers.
One person can easily operate two CNC lathes without stopping, and can input data for subsequent workpieces on a multi-page screen. The monthly production capacity of molds of ￠180 and below is 1200-1300 sets. It greatly reduces the labor intensity of lathe workers and also reduces the labor cost. The semi-enclosed protective sheet metal also improves the mental outlook of lathe workers.
Parameter for TY1250 vertical CNC lathe
Specifications | VTC1250 |
Max. turning diameter of workpiece | 1250mm |
Max.turning diameter | 1000/1250(disc type) |
Vertical travel of tool post | 1000mm |
Horizontal travel of tool post | 50-700mm |
Spindle model | A2-11 |
Spindle load | 1500KG |
Spindle speed range | 50-600rpm,1:2.5 Speed ratio |
Main motor power | 30kw(Rated speed750) |
X axis rapid feed traverse | 15m/min |
Z axis rapid feed traverse | 12m/min |
Cutting feed speed | 0.1-5000mm/min |
X axs motor power/Torque | 3.14 kW /20NM |
Z axs motor power/Torque | 3.14 kW /20NM brake |
Tool post type | 4 station electric tool post |
Tool shank size | 40×40mm |
Chuck diameter | 1000mm（manual 4 jaw） |
Positioning accuracy | ±0.01mm |
Repeat positioning accuracy | ±0.005mm |
Machine weight | ≈12800kg |
Overall dimensions | 3060×3010×3500mm |

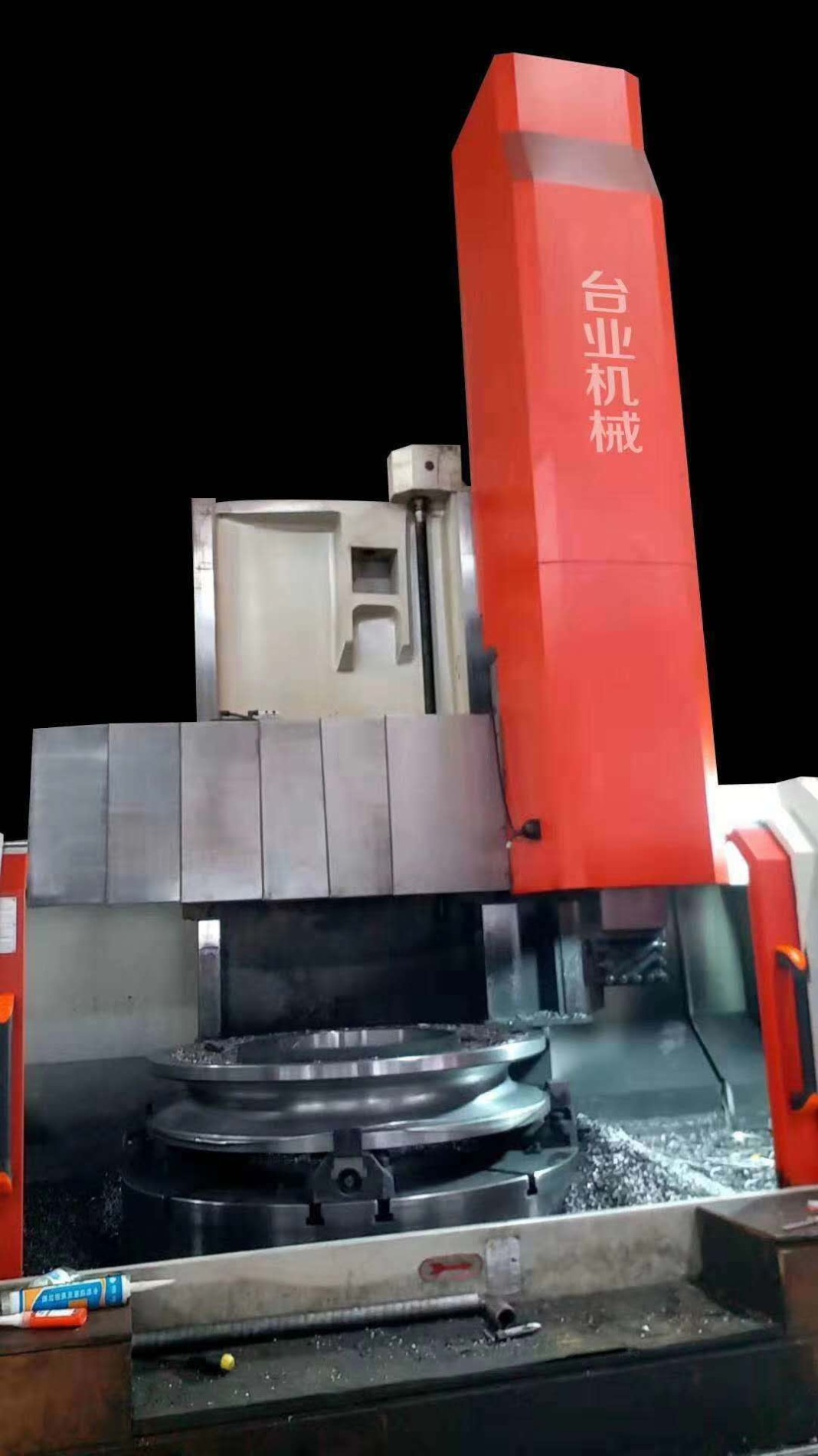

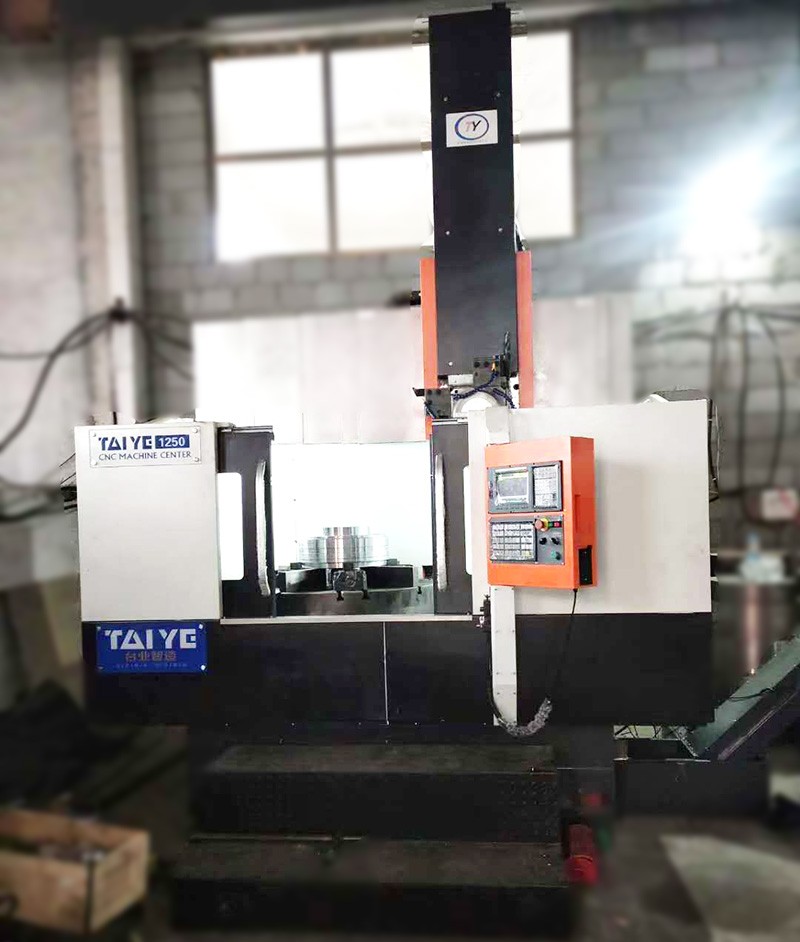

Product Show
FAQ:
Q1: What is the advantage for Taiye CNC Lathe?
A1: 1. No programming required. Our company provides professional automatic programming software developed by ourselves.
2, no need to know the workmanship. It is easy to learn, and the use of the workmanship is no longer annoying for recruitment.
Q2: What's your payment terms?
A2: We accept T/T Payment, 30% deposit and balance payment before shipment.
Q3: DO YOU HAVE AFTER-SALE SERVICE?
A3: Our quality and service is our life, each machine tools have 18 month warranty and lifetime maintaince .
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
