71540 EDM Sparking Machine For Mold Dies Processing

BrandTAIYE
Product originHANGZHOU CHINA
Delivery time30 Days After Order Confirm
Supply capacity30 Sets Per Month

Taiye EDM machine, use high rigidity and stablity HT250 cast iron base machine, Taiye fool-like style operation system, Imported brand servo motor, suitable for 3C electronic products, automobile molds, hardware molds and other wire cutting processing. Taiye machinery company, more than 200 high tech talents and more than 20000 square meter production workshop. We have more than 10 machine tool software patent rights, which is make our machine tool have more competitive advantage Taiye CNC machine tools are hot sale in southeast Asia, north Africa, China mainland. our customer include JMA aluminum company, FengLu aluminum, Xingfa alumium company, etc.

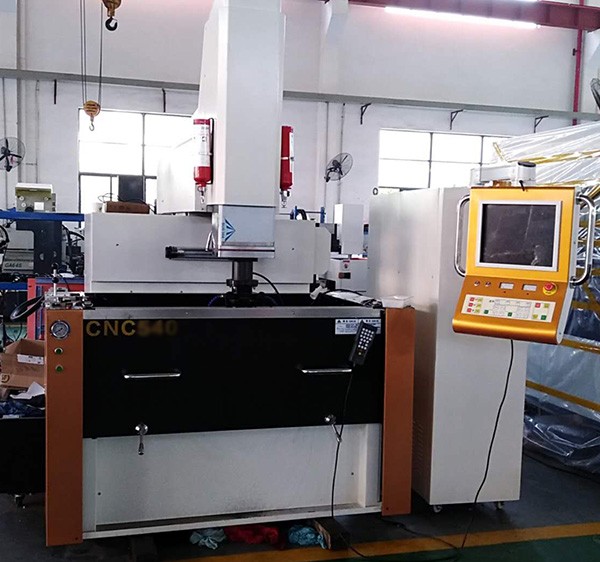

71540 EDM Sparking Machine For Mold Dies Processing

EDM machine

Machine Introduction

1. EDM machine body structure with advanced castings of resin sand stress relieving.

2. Adopting high precision design and frame structure.

4. X,Y axis are made up V-shape and plane structure,ensuring the precision life of mechanical.

5. Adopting import brand servo motor,linear bearing and high strength and precision of integral castings.

6. Using high frequency induction hardening heating treatment.

7. The table which is precision grinded work table.

8. Using centrifugal high pressure oil pump and 10u filter system.

9. Taiye patent technical, Increase machine life and ensure mold processing finish

electronic discharge

Parameters		UNIT	EDM 71540
Working Tank (LxWxH)		mm	1270 x 750 x 470

Table Size (LxW)		mm	800x 500
Travel Size	X	mm	500
	Y	mm	400
	Spindle Travel(Z)	mm	200
	Auxiliary Travel(Z)	mm	300
Distance between Spindle Nose to Work Table	Min.	mm	58
Distance between Spindle Nose to Work Table	Max.	mm	450
Max. Table Load (Workpiece weight)		mm	1000
Max. Spindle Hold (Electrode weight)		kg	150
Oil Tank		L	470
Oil Tank Dimension (LxWxH)		mm	1260 x 780 x 450
Control Method			DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	1800 x 1500 x 2200
Machine Weight		kg	1800

Packing & Delivery

Packing Details : Gerenal packing for seashipping

Delivery Details : 30 days after order confirm

Tags:

How About Warranty?
We Provide One Year Warranty And Free Component In Guarantee Time
What About The MOQ?
MOQ is one sets.
Can You Provide Customzied Machines?
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
What Is The Advantage About Your Machine Tools ?
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
How Can I Choose The Most Suitable Machines ?
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Where Is Our Factory? How Can I Visit There?
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
