7140 EDM Sparking Machine For Mold Processing
Taiye 7140 EDM sparking machine, machine body structure withadvanced castings of resin sand stress relieving, Taiye energy saving design, imported brand servo motor, suitable for 3C electronic products, automobile molds, hardware molds and other wire cutting processing.
Machine Introduction
1.Adopting precision CAD design and high precision frame structure.
2.imported high rigidity and stablity ball screw.
3.X,Y axis are made up V-shape and plane structure,ensuring the precision life of mechanical.
4.Adopting import brand servo motor,linear bearing and high strength and precision of integral castings.
5.Using high frequency induction hardening heating treatment.
6.The table which is precision grinded work table.
7.The castings are stress relieving cast iron.
7140 EDM Sparking Machine parameter
TYPE | TY 7140 | |
Worktable Size | mm | 350*630 |
Working groove inner diameter | mm | 1150*620*380 |
Z\Y\Z Axis Travel | mm | 370*270*250 |
Spindle end to connecting plate distance | mm | 640 |
Maximum electrode weight | Kg | 75 |
Storage tank capacity | L | 450 |
Dimension | mm | 1000*1250*2100 |
Weight | Kg | 1100 |
Electric cabinet specifications | A | 150A |
Input Voltage | V | 380 |
power capacity | KVA | 5 |
Finest surface roughness | UM | Ra 0.2 |

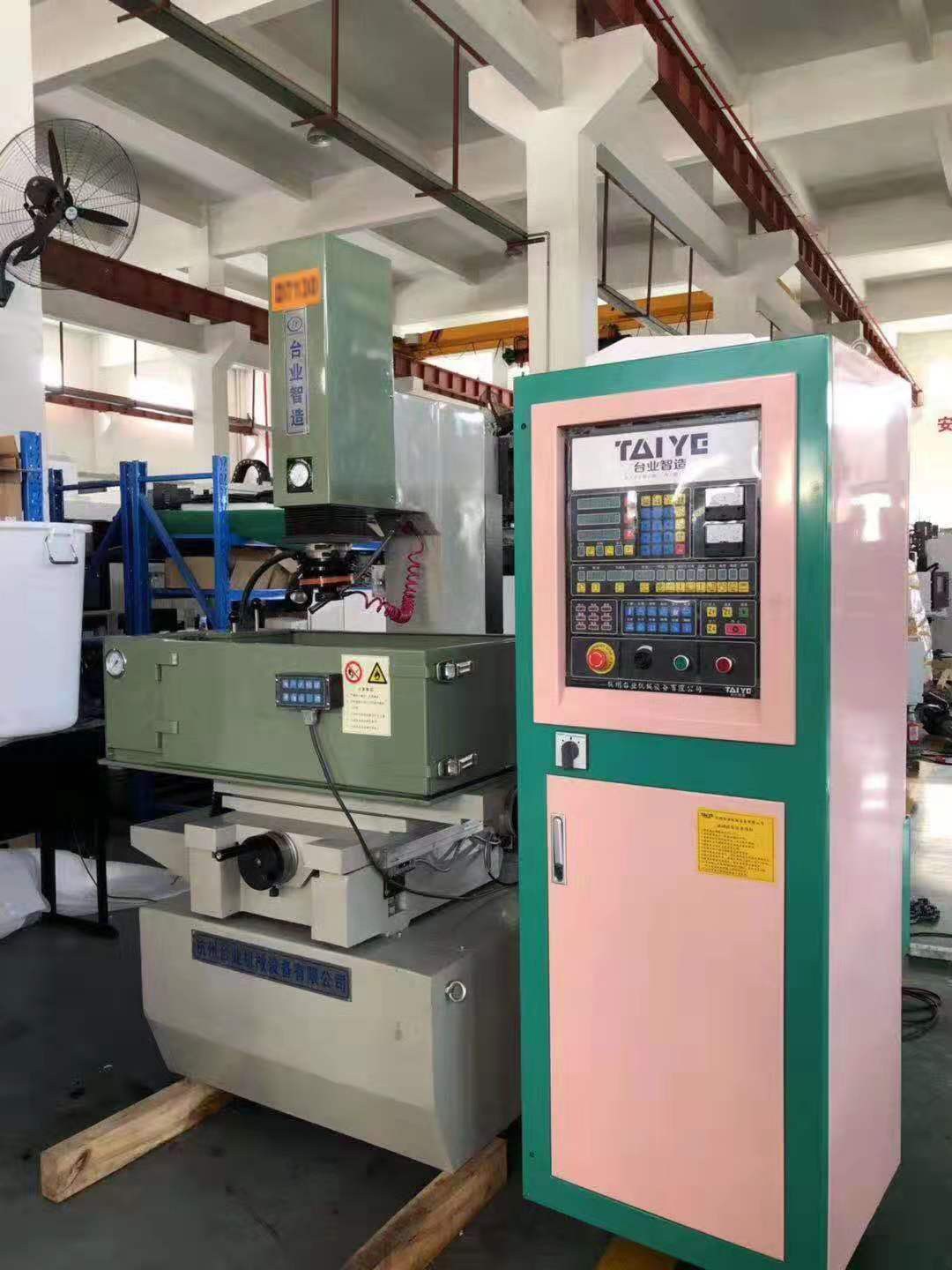

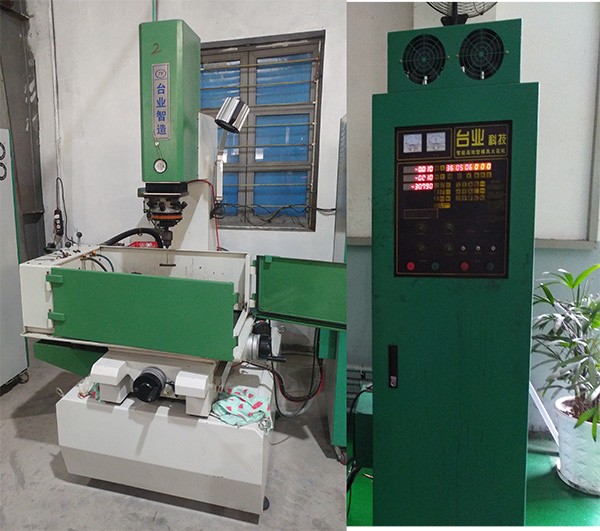

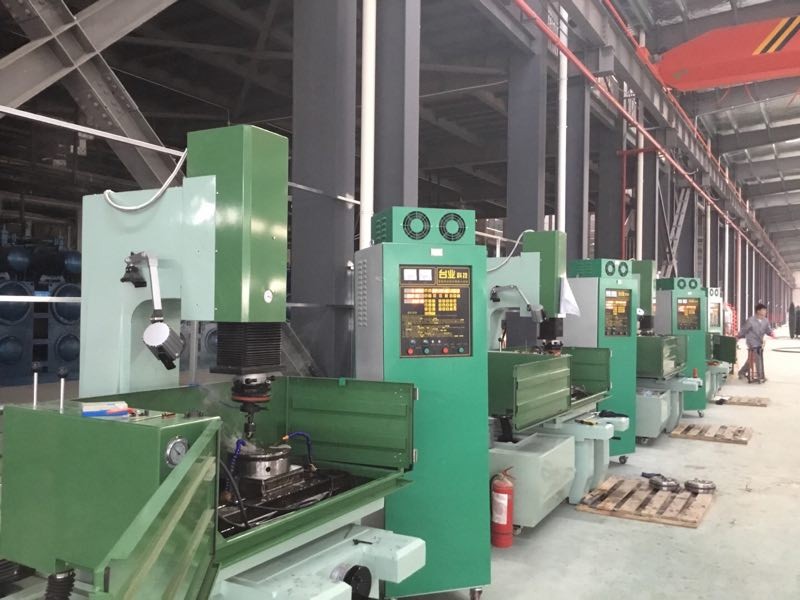

Product Show
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
