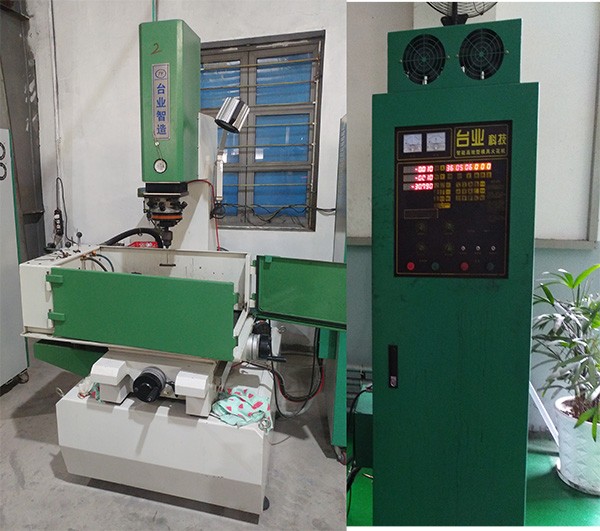

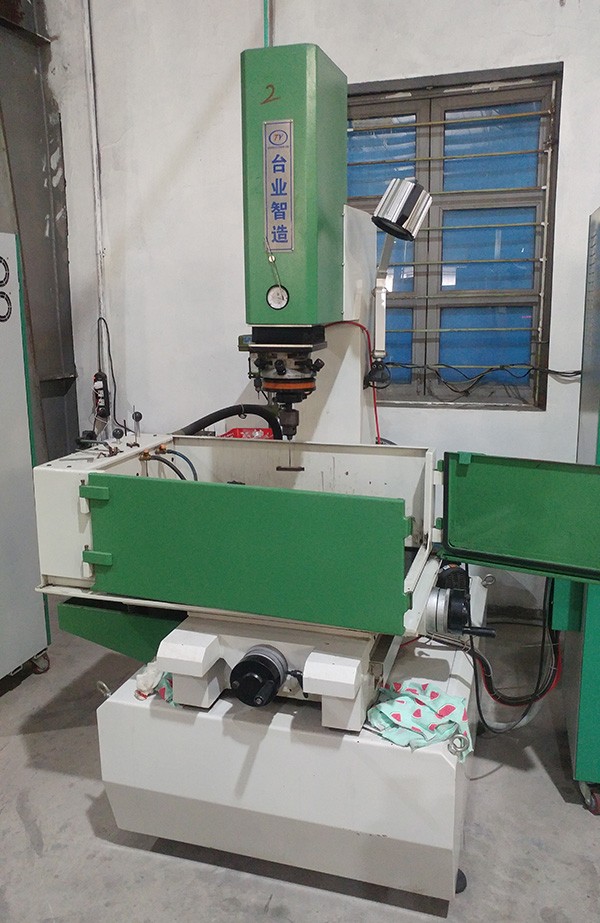

7130 EDM Sparking Machine For Mold Dies Processing
Machine Introduction
1.Machine body structure with advanced castings of resin sand stress relieving.
2.Adopting precision CAD design and high precision frame structure.
3.X,Y axis movement surface with "TURCITE" and ball screw.
4.X,Y axis are made up V-shape and plane structure,ensuring the precision life of mechanical.
5.Adopting import brand servo motor,linear bearing and high strength and precision of integral castings.
6.Using high frequency induction hardening heating treatment.
7.The table which is precision grinded work table.
8.Using centrifugal high pressure oil pump of WALRUS and 10u filter system.
9.The castings are stress relieving cast iron.
10.The desktop uses high frequency quenching.
TYPE | TY 7130 | |
Worktable Size | mm | 300 X 550 |
Working groove inner diameter | mm | 870 X 540 X 320 |
Z\Y\Z Axis Travel | mm | 300 X 200 X 240 |
Spindle end to connecting plate distance | mm | 300~540 |
Maximum electrode weight | Kg | 25 |
Storage tank capacity | L | 300 |
Dimension | mm | 1000 X 1150 X 2050 |
Weight | Kg | 900 |
Electric cabinet specifications | A | 150A |
Input Voltage | V | 380 |
power capacity | KVA | 5 |
Minimum electrode loss | 1% | |
Finest surface roughness | UM | Ra0.2 |
Packing Details : general packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
