TY320 Close Loop Servo Molybdenum Wire Cut EDM Machine
Taiye TY320 medium Close Loop Servo Molybdenum wire cut EDM machine, max processing 400x320 MM metal molds, the machine use high rigidity and stablity wire cut EDM base machine, Imported brand servo motor, suitable for 3C electronic products, automobile molds, hardware molds and other wire cutting processing.
Taiye machinery company, have more than 15 years high performance CNC machine tools manufacturing experience, our machine tools are widely used in aluminum extrusion dies, many mold factories and aluminum companies in China have used our equipment.
Parameter for TY320 Close Loop Servo Molybdenum Wire Cut EDM Machine
CNC Wire Cut EDM | Unit | SF-320 | |
Worktable size (L× W) | mm | 690*520 | |
Table travel(X× Y) | mm | 400× 320 | |
Max. workpiece thickness | mm | 300 | |
Max. taper angle/plate thickness | degree/mm | ± 3° /80 | |
Max. machining speed | mm² /min | 220 | |
Precision | Octagon | mm | ≤ 0.015 |
taper | mm | ≤ 0.004 | |
Max. working current | A | 6 | |
Roughness, three cutting | μ m | ≤ 1.5 | |
Wire diameter | mm | 0.12~0.2 | |
Wire travelling speed | m/min | 5~11 | |
Load of table | Kg | 400 | |
Working solution | working solution BM-2/BM-4 or Saponification Liquid | ||
Working reservoir capacity | L | 150 | |
Power supply | 3N-380V/50Hz | ||
Power consumption | KVA | 2 | |
Wire guide frame | Adjustable | ||
Machine dimensions(L× W× H) | mm | 1500*1100*1400 | |
Machine weight | Kg | 2000 | |
Machine Language | CN/ EN/JP/RU | ||
Machine Servo | Mitsubishi Servo | ||

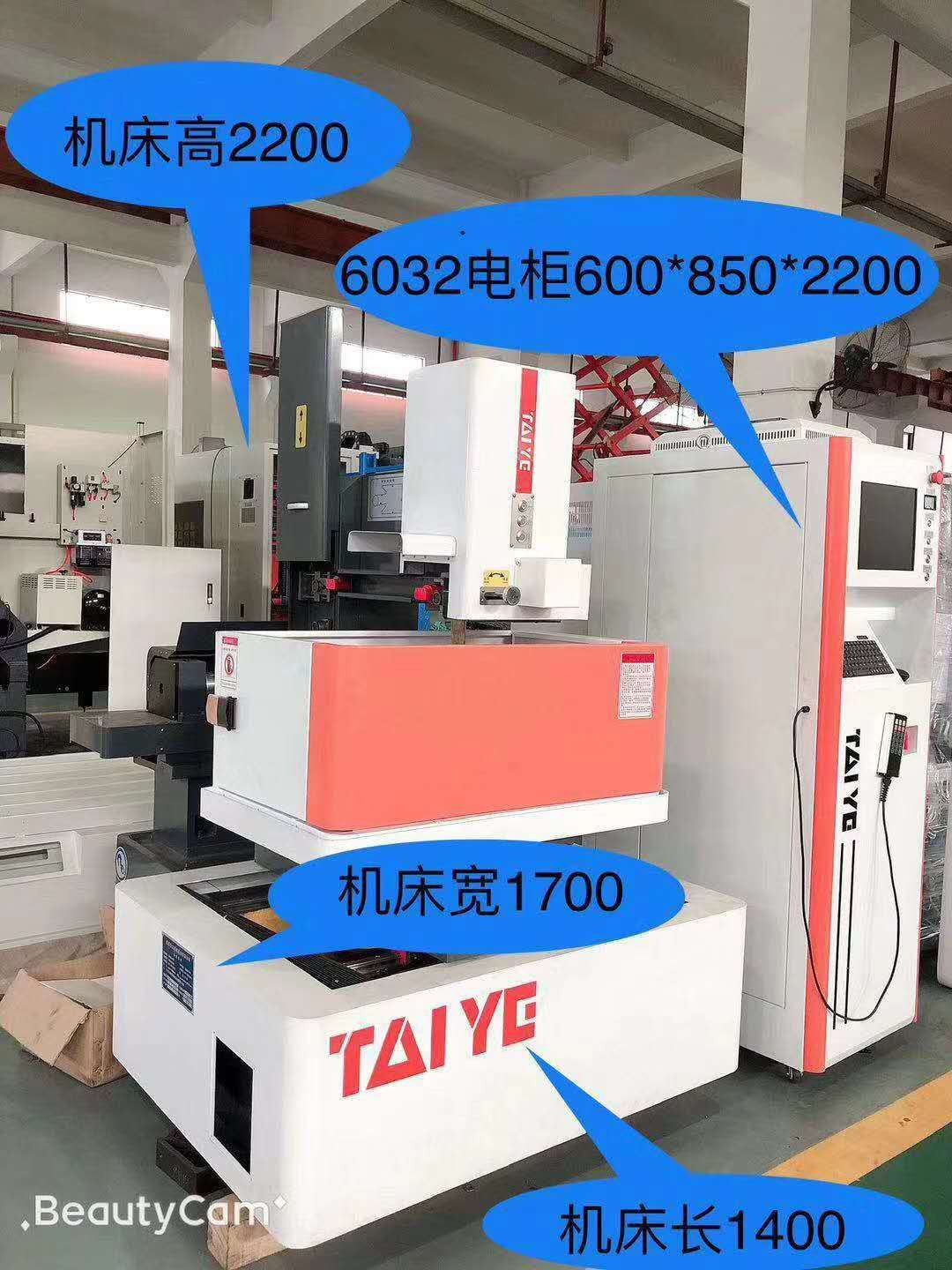

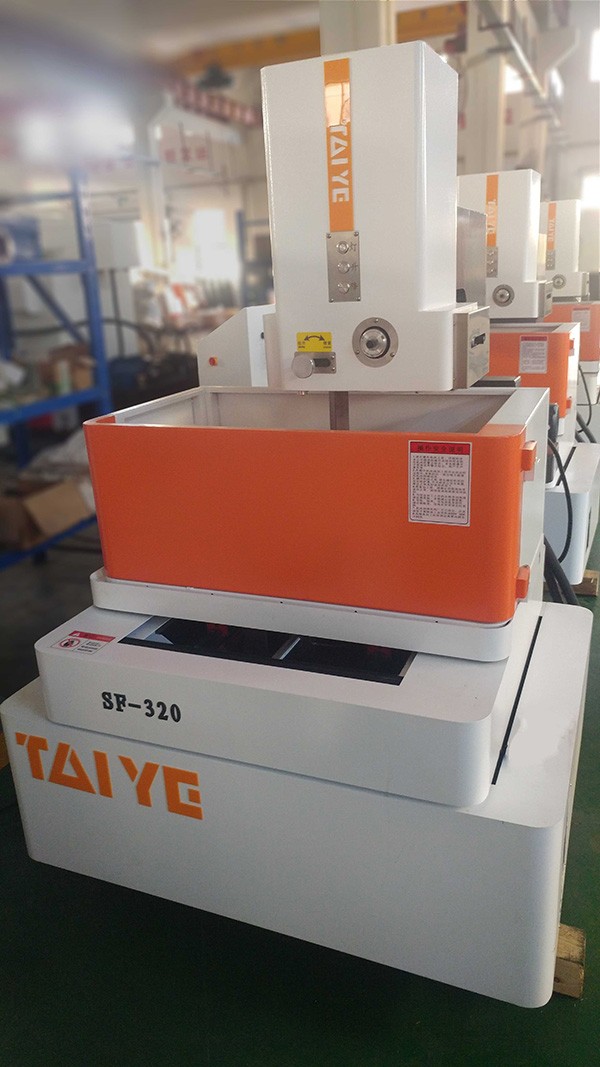

Product Show
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
