63 Close Loop Servo Molybdenum Wire Cut EDM Machine

BrandTAIYE
Product originHANGZHOU CHINA
Delivery time30 Days After Order Confirm
Supply capacity30 Sets Per Month

Complete processing process of aluminum extrusion.docx

Taiye wire cut EDM machine, use high rigidity and stablity HT250 cast iron base machine, Taiye fool-like style operation system, Imported brand servo motor, suitable for 3C electronic products, automobile molds, hardware molds and other wire cutting processing. Taiye machinery company, more than 200 high tech talents and more than 20000 square meter production workshop. We have more than 10 machine tool software patent rights, which is make our machine tool have more competitive advantage Taiye CNC machine tools are hot sale in southeast Asia, north Africa, China mainland. our customer include JMA aluminum company, FengLu aluminum, Xingfa alumium company, etc.

63 Close Loop Servo Molybdenum Wire Cut EDM Machine

Taiye Molybdenum wirecut EDM machine, also know as medium speed wire EDM machine, Taiye 63 Close loop servo wire EDM machine use brass wire cut EDM base machine, imported brand servo motor, high rigidity and stablity and high finish, max processing 1000 x 630 extrusion dies, suitable for 3C electronic products, automobile molds, hardware molds and other wire cutting processing.

Parameter

CNC Wire Cut EDM		Unit	SF-63
Worktable size (L× W)		mm	1100 X 800
Table travel(X× Y)		mm	1000× 630
Max. workpiece thickness		mm	300
Max. taper angle/plate thickness		degree/mm	± 3° /80
Max. machining speed		mm² /min	220
Precision	Octagon	mm	≤ 0.015
	taper	mm	≤ 0.004
Max. working current		A	6
Roughness, three cutting		μ m	≤ 1.5
Wire diameter		mm	0.12~0.2
Wire travelling speed		m/min	5~11
Load of table		Kg	600
Working solution			working solution BM-2/BM-4 or Saponification Liquid
Working reservoir capacity		L	150
Power supply			3N-380V/50Hz
Power consumption		KVA	2
Wire guide frame			Adjustable
Machine dimensions(L× W× H)		mm	2300 × 1900×2100
Machine weight		Kg	3000
Machine Language			CN/ EN/JP/RU
Machine Servo			Mitsubishi Servo

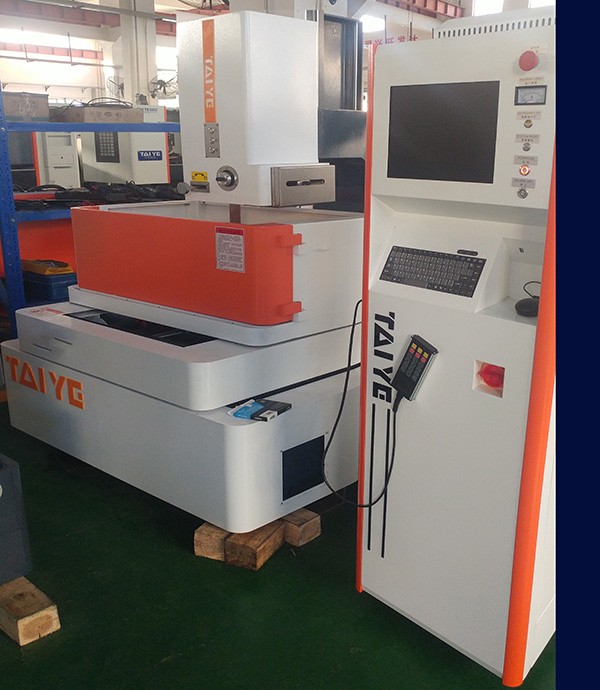

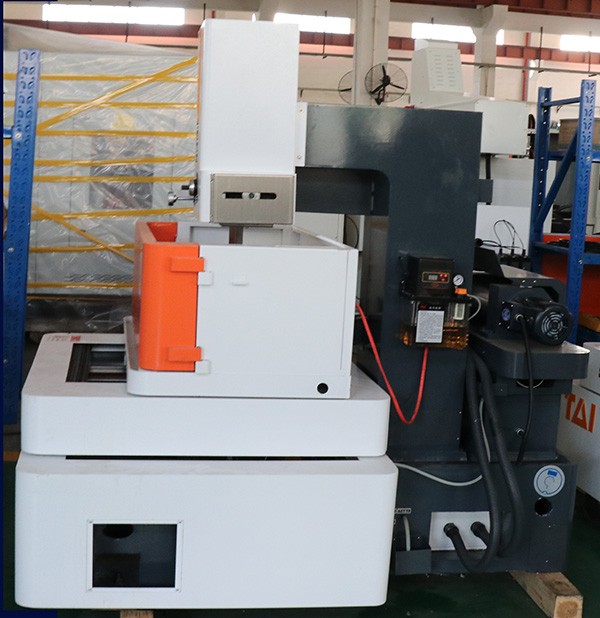

Product Show

Delivery：

Delivery period 30 days after order confirm

General packing for oversea

wire EDM machine

Tags:

How About Warranty?
We Provide One Year Warranty And Free Component In Guarantee Time
What About The MOQ?
MOQ is one sets.
Can You Provide Customzied Machines?
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
What Is The Advantage About Your Machine Tools ?
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
How Can I Choose The Most Suitable Machines ?
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Where Is Our Factory? How Can I Visit There?
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
