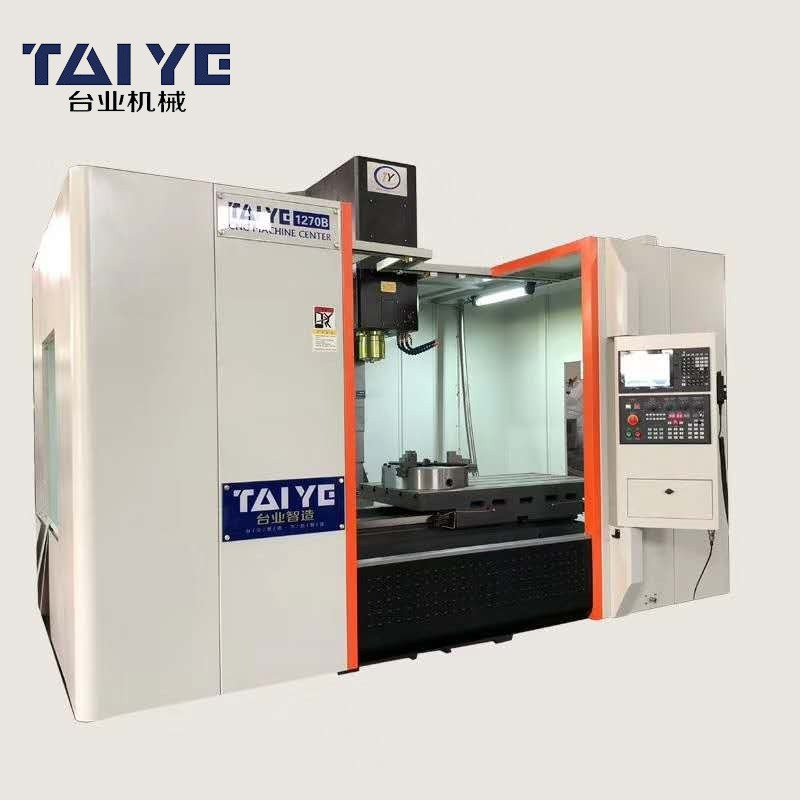

VMC1270 Type 3 Axis Hard Line Vertical CNC Milling Machine
Taiye vertical milling machine center max processing 1200*700 MM aluminum extrusion dies.
Parameter for 3 Axis Hard Line VMC1270 Vertical CNC Milling Machine
| Table size (MM) | 1400*700 |
| X-axis travel (MM) | 1200 |
| Y-axis travel (MM) | 700 |
| Z-axis travel (MM) | 600 |
| X/Y/Z axis motor power | 3/ 3 / 4.5 KW |
| Maximum table load (KG) | 1000 |
| T-slot | 5-18-152.5 MM |
| Spindle type | BT50/155 |
| spindle speed | 8000 RPM |
| Spindle power (KW) | 70/11 KW |
| Rapid traverse (X/Y/Z) (mm/min) | 18000 |
| Cutting feed (mm/min) | 2-8000 |
| Spindle nose to table (MM) | 150-750 |
| Spindle center to column surface distance rail (MM) | 785 |
| Positioning accuracy (MM) | ±0.005 |
| Repeat accuracy (MM) | ±0.003 |
| Maximum tool diameter (MM) | Φ150 |
| Maximum tool length (MM) | 300 |
| Maximum tool Number | 24T |
| Maximum tool weigh (KG) | 6 |
| Dimensions (MM) | 3300*2800*2250 |
| Machine weight (KG) | 7500 |
1) Simple structure in linear type ,easy in installation and maintation.
2) world famous brand components parts.
3) Running in a high automatization and intellectualization,no pollution

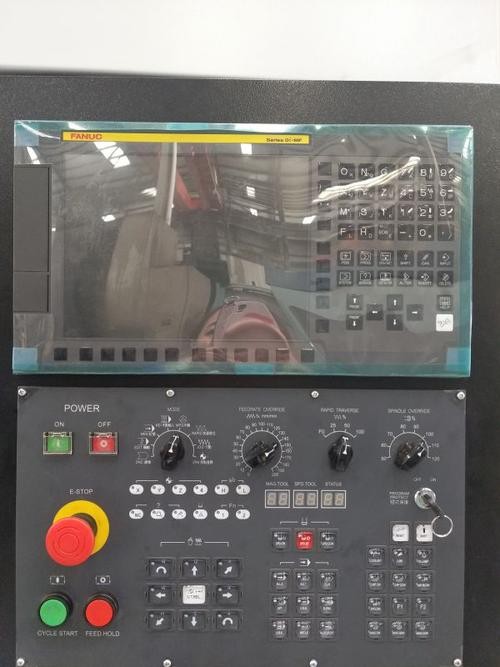

| 1. CNC system: Fanuc Oi-Mf | ||||||||
| 2.The high quality castings: Resin sand casting | ||||||||
| 3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||

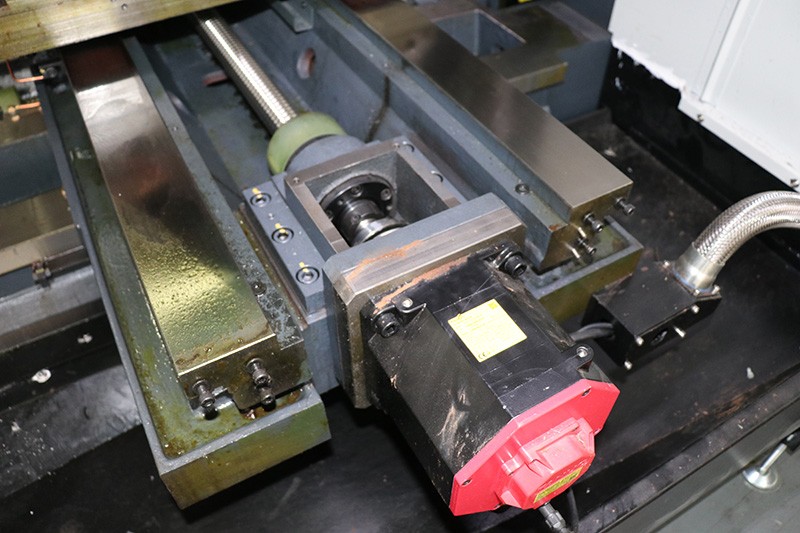

| 4.The screw: TAIWAN PMI/ HIWIN | ||||||||
| 5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
| 6.The unclamping cylinder: Taiwan Shang product | ||||||||
| 7.Coupling ：Germany R+W | ||||||||
| 8.The bearing: Japan NSK | ||||||||
| 9.Crawler chip conveyor | ||||||||
| 10.Electrical equipment: Schneider | ||||||||
| 11.The Internal protection: Total protection | ||||||||
| 12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
FAQ:
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer .
Q2: WHAT'S YOUR PAYMENT TERM?
A2: We accept TT and L/C at sight
Q3: DO YOU HAVE AFTER-SALE SERVICE?
A3: Our quality and service is our life, each machine tools have one year warranty.
Q4: HOW LONG IS YOUR DELIVERY TIME?
A4: Generally it is 20-30 days.
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
