Name: Guide Screw
Brand: HIWIN /PMI
Original: Taiwan
Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.

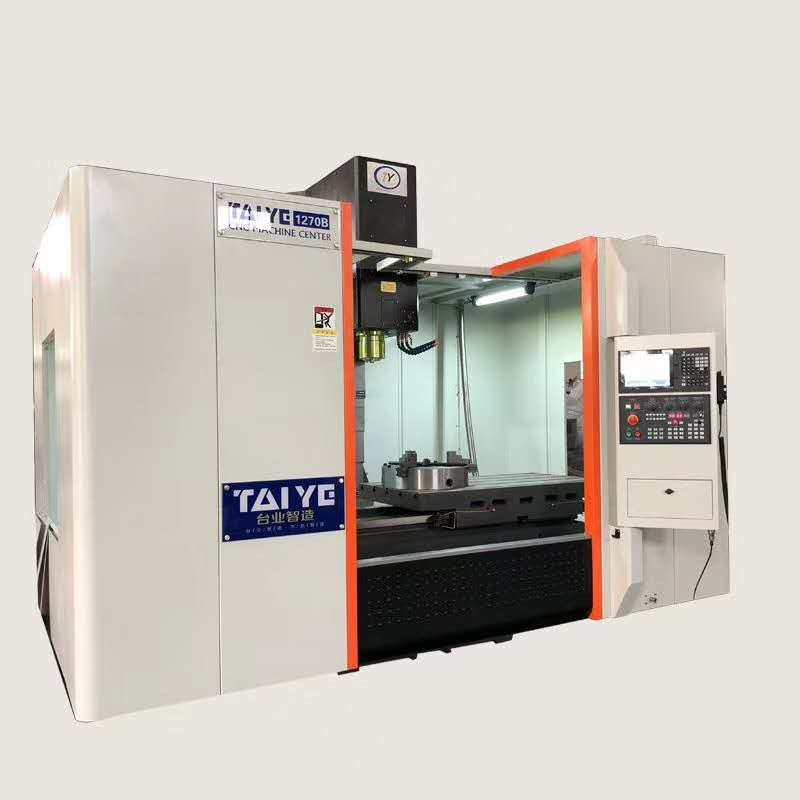

VMC1270 3 Axis Hard Line Vertical Milling Machining Center For Mold Process
| Table size (MM) | 1400*700 |
| X-axis travel (MM) | 1200 |
| Y-axis travel (MM) | 700 |
| Z-axis travel (MM) | 600 |
| X/Y/Z axis motor power | 3/ 3 / 4.5 KW |
| Maximum table load (KG) | 1000 |
| T-slot | 5-18-152.5 MM |
| Spindle type | BT50/155 |
| spindle speed | 8000 RPM |
| Spindle power (KW) | 70/11 KW |
| Rapid traverse (X/Y/Z) (mm/min) | 18000 |
| Cutting feed (mm/min) | 2-8000 |
| Spindle nose to table (MM) | 150-750 |
| Spindle center to column surface distance rail (MM) | 785 |
| Positioning accuracy (MM) | ±0.005 |
| Repeat accuracy (MM) | ±0.003 |
| Maximum tool diameter (MM) | Φ150 |
| Maximum tool length (MM) | 300 |
| Maximum tool Number | 24T |
| Maximum tool weigh (KG) | 6 |
| Dimensions (MM) | 3300*2800*2250 |
| Machine weight (KG) | 7500 |
1) Simple structure in linear type ,easy in installation and maintation.
2) world famous brand components parts.
3) Running in a high automatization and intellectualization,no pollution

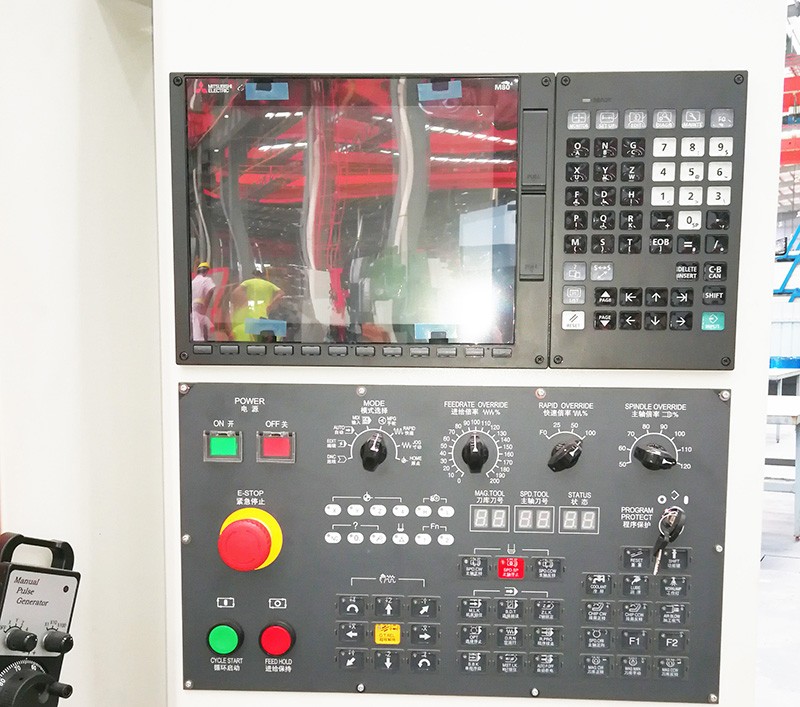

| 1.The CNC system: Mitsubishi M80A | ||||||||
| 2.The high quality castings: Resin sand casting | ||||||||
| 3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||
| 4.The screw: TAIWAN PMI/ HIWIN | ||||||||
| 5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
| 6.The unclamping cylinder: Taiwan Shang product | ||||||||
| 7.Coupling ：Germany R+W | ||||||||
| 8.The bearing: Japan NSK | ||||||||
| 9.Crawler chip conveyor | ||||||||
| 10.Electrical equipment: Schneider | ||||||||
| 11.The Internal protection: Total protection | ||||||||
| 12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
Name: Guide Screw
Brand: HIWIN /PMI
Original: Taiwan
Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.
Name: Linear Guide Rail
Brand: HIWIN
Original: Taiwan
X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.
Name: Spindle
Brand: KENTURN / ROYAL
Original: Taiwan
Taiwan KENTURN / ROYAL high precision Spindlewith standard speed up to 8000rmp
Name: Bearing
Brand: FAG or NSKName: ATC
Brand: HDW or OKADA
Original: Taiwan
Taiwan HDW or OKADA disc type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds
Name: Alloy cast iron of the machine body
The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
