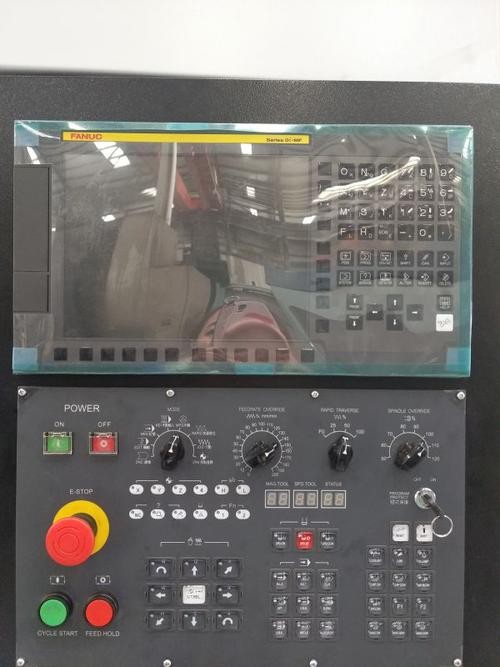

VMC 650 Type 3 Axis Hard Line Vertical CNC Milling Machine With Fanuc 0i-MF Control

BrandTAIYE
Product originHANGZHOU CHINA
Delivery time30 Days After Order Confirm
Supply capacity30 Sets Per Month

Taiye CNC machine tool have more than 15 years high performance machine tool manufacture experience, special use in aluminum extrusion mold dies and metal machining industrial. Taiye machinery company, more than 200 high tech talents and more than 20000 square meter production workshop. We have more than 10 machine tool software patent rights, which is make our machine tool have more competitive advantage Taiye vertical machining center, hot sale in southeast Asia, north Africa, China mainland. our customer include JMA aluminum company, FengLu aluminum, Xingfa alumium company, etc.

VMC 650 Type 3 Axis Hard Line Vertical CNC Milling Machine With Fanuc 0i-MF Control

TY-650 vertical / hard rail
Table size (MM)	420 x 800
X-axis travel (MM)	650
Y-axis travel (MM)	400
Z-axis travel (MM)	480
Maximum table load (KG)	600
T-slot(slot number×width×pitch) (MM)	3-18-135
Spindle power (KW)	7.5
Maximum spindle speed (RPM)	8000
Rapid traverse (X/Y/Z) (mm/min)	20000
Cutting feed (mm/min)	2-8000
Spindle nose to table (MM)	80-560
Spindle center to column surface distance rail (MM)	480
Positioning accuracy (MM)	±0.005/300
Repeat accuracy (MM)	±0.003/300
Screw Type	3206
TOOL type	BT40
ATC type	ARM
Maximum tool weigh (KG)	6
Dimensions (MM)	230020002500
Machine weight (KG)	4000

CNC milling machine

Main Features

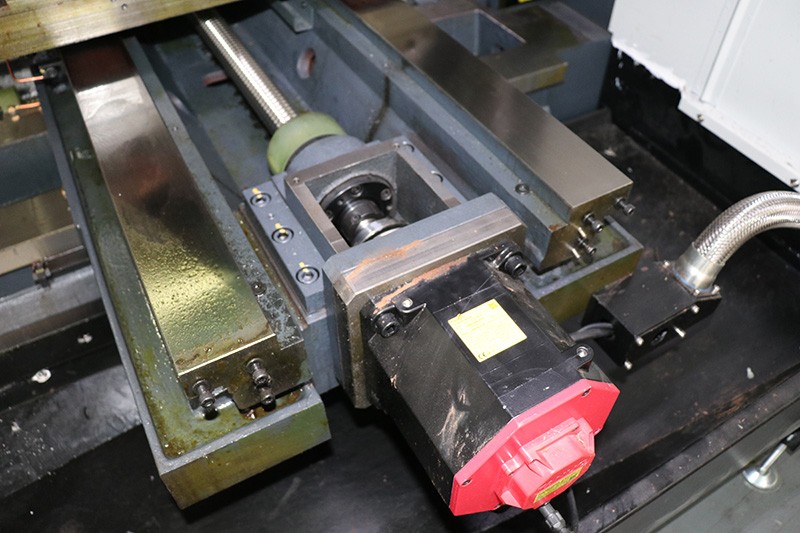

Name: Guide Screw
Brand: HIWIN /PMI
Original: Taiwan

 Guide screw is Taiwan HIWIN /PMI C3 high precision with high strength ball screw.Ensure the positioning accuracy and repeat positioning accuracy of the machine tool.
Machine Parts
Name: Linear Guide Rail
Brand: HIWIN
Original: Taiwan

X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail, may satisfy the customer the speed, the precision high request.



Main Features
Name: Spindle
Brand: KENTURN / ROYAL
Original: Taiwan

Taiwan KENTURN / ROYAL high precision Spindlewith standard speed up to 8000rmp
Main Features
Name: Bearing
Brand: FAG or NSK

Germany FAG or Japanese NSK cylindrical roller bearings are high-rigid and can support high radial loads, and because of the cage, they are more suitable for high speeds than full load designs.
Main Features

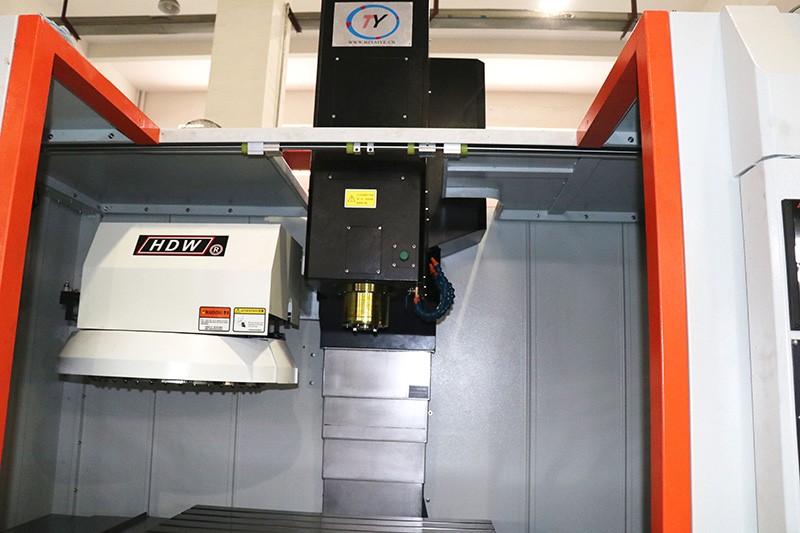

Name: ATC
Brand: HDW or OKADA
Original: Taiwan
Taiwan HDW or OKADA disc type automatic tool changer.
Mechanical arm tool change, point-to-point tool change only 1.9 seconds
Machine Body
Name: Alloy cast iron of the machine body

The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
