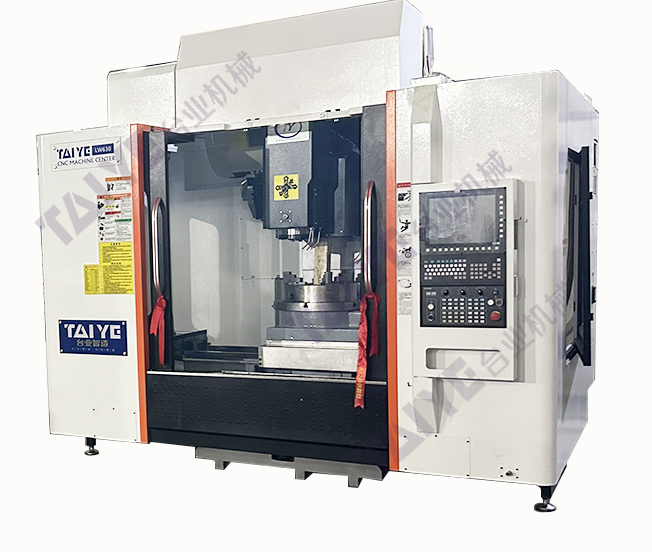

Taiye TY-LW500-A 3 axis machine center For Aluminum Extrusion Dies
Taiye TY-LW500-A 3 axis hard line vertical milling machine is special use for alumium extrsuion dies processing, the machine tools can be max processing 500 MM extrusion dies, and the vertical machining center adopt high rigidity and stablity bara machine, import brand spindle and screw, high quality accessories, won the trust and use of customers.
台业 TY-LW500 （A）款3轴加工中心，主要针对铝型材挤压模具而研发，该机床最大可加工500 mm挤压模具。
Main Features for TY-LW500-A 3 axis machine center
1) easy in installation and maintation.
2) world brand components parts.
3) Running in a high automatization and intellectualization,no pollution
Parameter for Taiye TY-LW500-A 3 axis machine center
1.The CNC system: Mitsubishi M80 | ||||||||
2.The high quality castings: Resin sand casting | ||||||||
3.The spindle: Taiwan famous high speed spindle 8000 RPM | ||||||||
4.The screw: TAIWAN PMI/ HIWIN | ||||||||
5.ATC: Robotic tool magazine ATC （HDW ) | ||||||||
6.The unclamping cylinder: Taiwan Shang product | ||||||||
7.Coupling ：Germany R+W | ||||||||
8.The bearing: Japan NSK | ||||||||
9.Crawler chip conveyor | ||||||||
10.Electrical equipment: Schneider | ||||||||
11.The Internal protection: Total protection | ||||||||
12.After-sales Service：one year warranty and free component in guarantee time, we can sent our engineers to repair your machines | ||||||||
TY-LW500-A3 axis machine center | |
Table size (MM) | Φ500 |
X-axis travel (MM) | 800 |
Y-axis travel (MM) | 500 |
Z-axis travel (MM) | 800 |
X/Y/Z axis servo motor power | 5.9/ 5.9 / 5.9 KW |
Maximum table load (KG) | 600 |
T-slot | 5-18X120 |
Spindle type | BT40 |
spindle speed | 8000 RPM |
Spindle power (KW) | 22 KW |
Rapid traverse (X/Y/Z) (mm/min) | 24000 |
Cutting feed (mm/min) | 2-8000 |
Spindle nose to table (MM) | -150 - 650 |
X/Y/Z轴行程 X/Y/Z Axis Travel | 800×500×800 |
定位精度 Positioning accuracy (MM) | ±0.008 |
重复定位精度 Repeat accuracy (MM) | ±0.008 |
line Rail type | X axis/ RGH45HA |
刀库可装刀Maximum tool Number | 24T |
Maximum tool weigh (KG) | 6 |
Dimensions (MM) | 2900×2500×2900 |
Machine weight (KG) | 7000 |
Product Show
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
