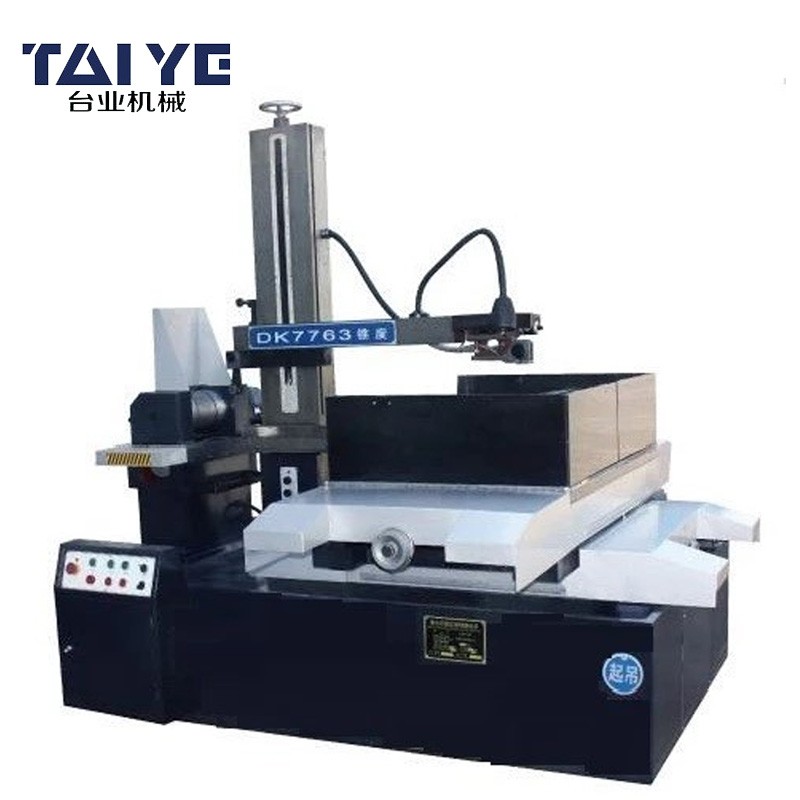

DK7763 Wire Cut EDM High Speed For Mold Dies Machining
Taiye DK7763 Wire Cut EDM High Speed For Mold Dies Machining
1.Large travel up to 630 MM.
2.Roughness: Ra 1.6-2.5 µm.
3.Taper angles up to ± 30°.
4.Work pieces to 600mm thick.
5. Accuracy: 0.015mm, even 0.01mm.
6. High cutting speed modular is optional.
7. Standard model is equipped with ± 3° taper attachment.
8.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
9. Taiye professional optimization, easy to use and ensure mold processing finish, increase the service life of the machine tool
Model | DK7763 |
Working Table size (mm) | 1140*750 |
Stroke(X/Y/)(mm) | 800*630 |
Max.Z axis travel(mm) | 600 |
Cutting angle(°/80mm) | 6° 15° 30° |
Max.cutting speed(mm²/min) | ≥90(High speed≥160) |
Optimum roughness(m) | ≤2.5(Medium speed≤1.0) |
Dia. of molybdenum wire(mm) | 0.1-0.3( recommend 0.18) |
Molybdenum wire moving speed(m/s) | 11.5 |
Working coolant | DX-1, DX-4, NG-1 |
Process accuracy (mm) | 0.01-0.015 |
Feeding Pulse equivalent (mm) | 0.001 |
Power supply | single phase, 220V/50Hz, three phase, 380V/50Hz |
Power consumption( Kw) | <1.0 |
Max.workpiece weight(kg) | 1000 |
Weight(kg) | 3000 |
Dimension(mm) | 2100x1800x1800 |
Packing Details : Gerenal packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
