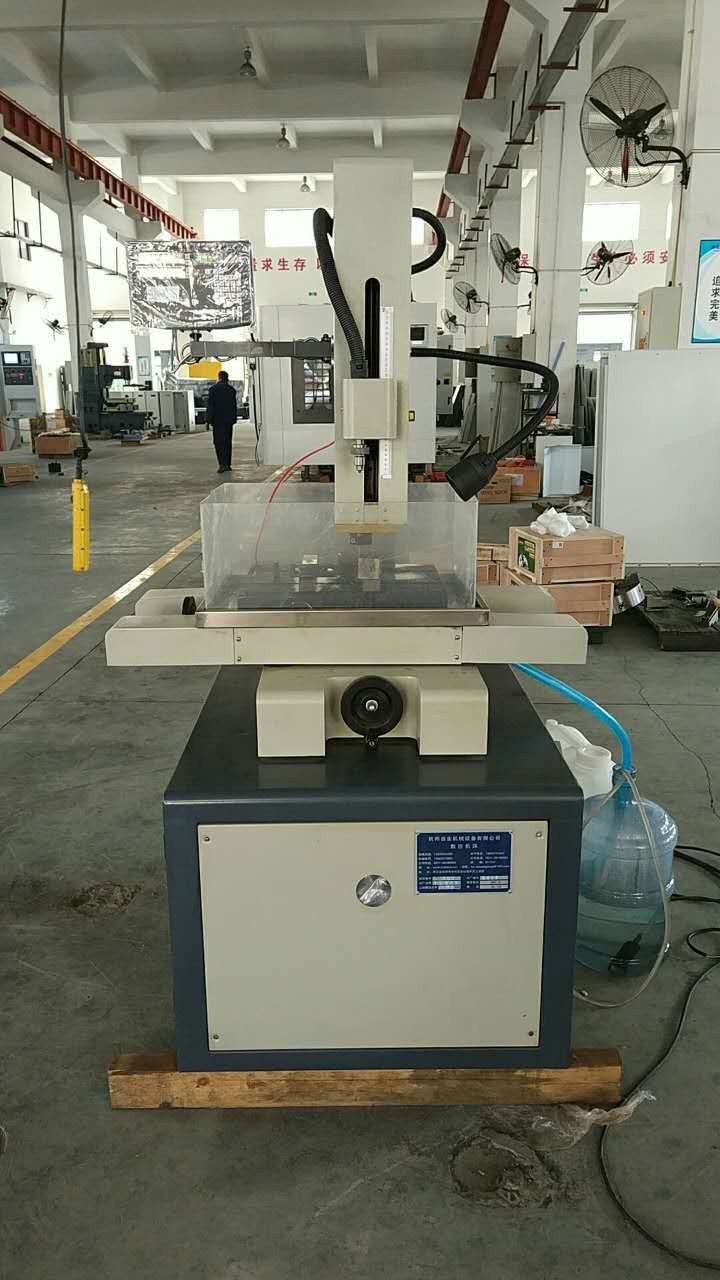

Taiye DD703 EDM Hole Drilling Machine
Taiye Hole Drilling EDM Machine characteristics:
◆ Easy and convenient use
◆ Drill on oblique and curved surface directly
◆ Drill deep hole with diameters 0.3mm ~ 3mm
◆ The working water can be normal water or saponification fluid and no pollution is brought
◆ Drilling hole speed up to 30mm~60mm depth per minute
◆ Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.
◆ Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminium and hard alloy etc
◆ Taiye professional optimization, more long term use life and more precision.
Taiye Three-axis EDM hole drilling machine | ||
Type | DD703 | Unit |
Clamping electrode diameter | ф0.3-ф3 | MM |
Spindle head travel | 250 | MM |
Spindle servo travel | 400 | MM |
worktable size | 300X450 | MM |
Worktable loading weight | 220KG | KG |
X-Y travel | 200x350 | MM |
Maximum distance between the guide and the workbench | 280 | MM |
Max.working current | 25 | A |
Max input Power | 3.5 3N | KW |
Working flume capacity | 25 | L |
Max.pump pressure | 77 | MPA |
WIGHT | 1000 | KG |
DIMENSION | 1100*1100*2100 | MM |
Packing Details : Gerenal packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
