TY966 gas Heat Treatment Vacuum Furnace for extrusion dies
TY966 gas Heat Treatment Vacuum Furnace is the machine tools that mainly used for vacuum bright quenching, tempering, solid solution of alloy structural steel, alloy tool steel, extrusion dies, bearing steel, elastic alloy, stainless steel, etc.
966 gas Heat Treatment Vacuum Furnace is composed of pressure furnace body, heating chamber, vacuum system, inflation system, water cooling system, pneumatic system and outer furnace transport vehicle.
966 gas Heat Treatment Vacuum Furnace maxinum heating 600 MM and maxinum loading 500 KG extrusion dies. This heat treatment vacuum furnace is high effective and economic and environmental protection.
Main technical parameters and specifications for Heat Treatment Vacuum Furnace 966
Effective heating zone size（mm） | （L）900×600（W）×600（H） |
Rated load | 500kg （ Including baskets, fixtures） |
Maximum temperature | 1320℃ |
Furnace temperature uniformity（℃） | ( Empty furnace, 1000°C, Nine-point temperature measurement)≤±5 |
Ultimate vacuum（Pa） | (Empty furnace, after purification by oven)4×10-1 |
Pressure rise rate（Pa/h） | ≤6. 5×10ˉ1Pa /h |
heating power | 130Kw |
Fan power | 22Kw |
Air-cooled pressure | ≤0.2MPa(2×105Pa) |
Applicable medium | Nitrogen |
Total installed power | ≤145Kw |
Water Consumption（m3 /h） | 40 |
Workpiece transfer time | ≤25s |

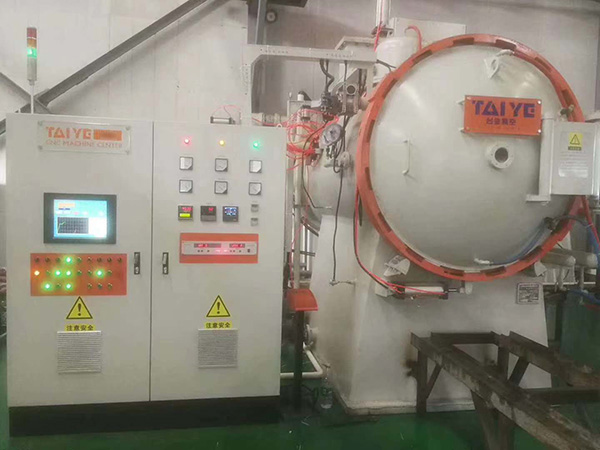

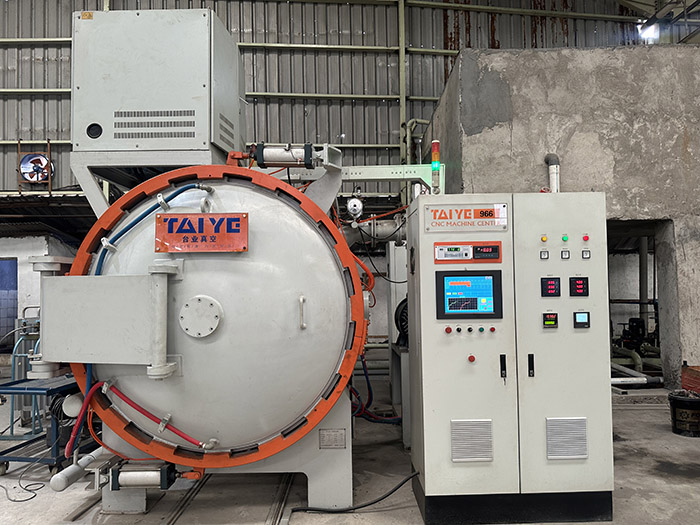

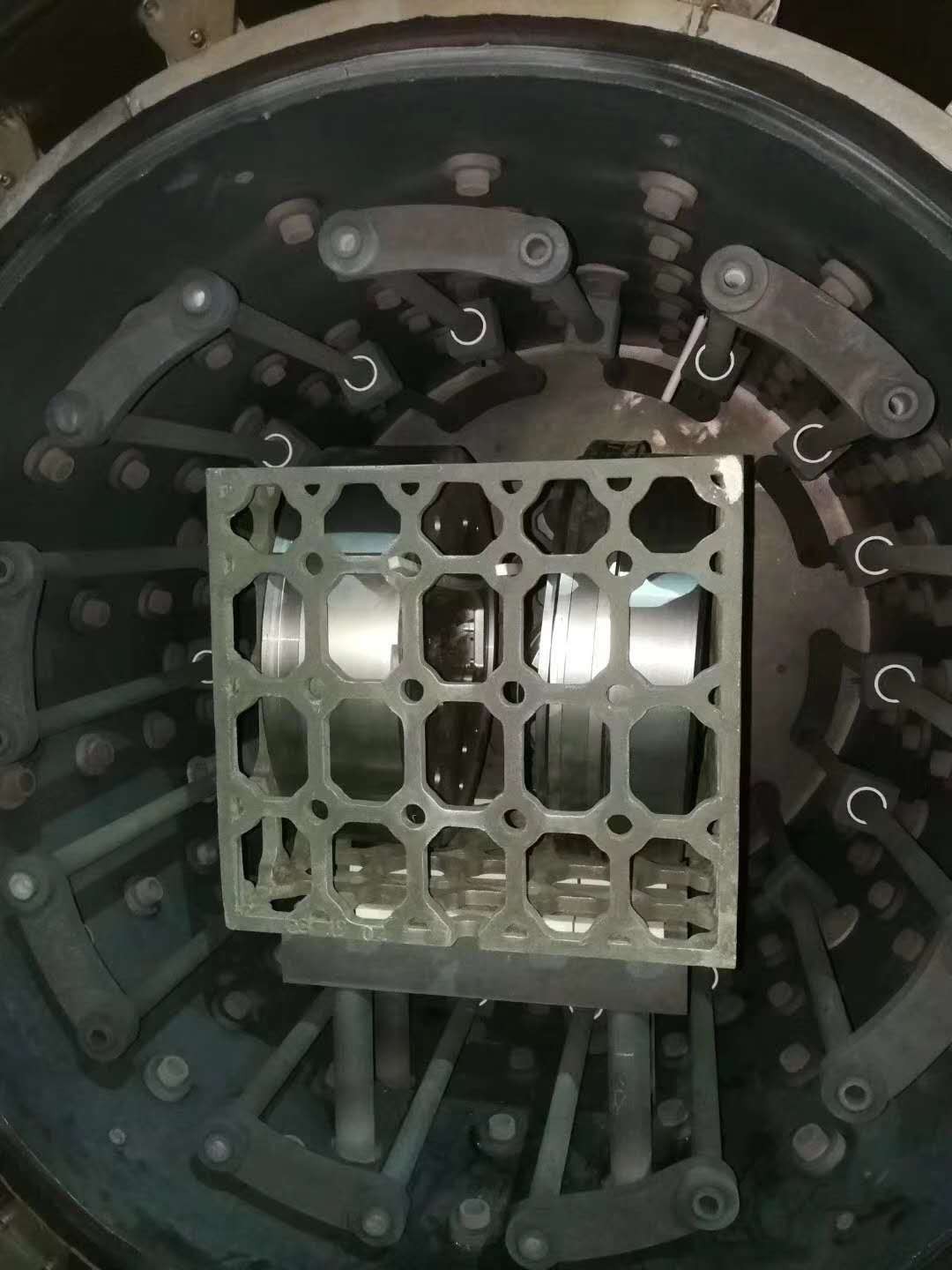

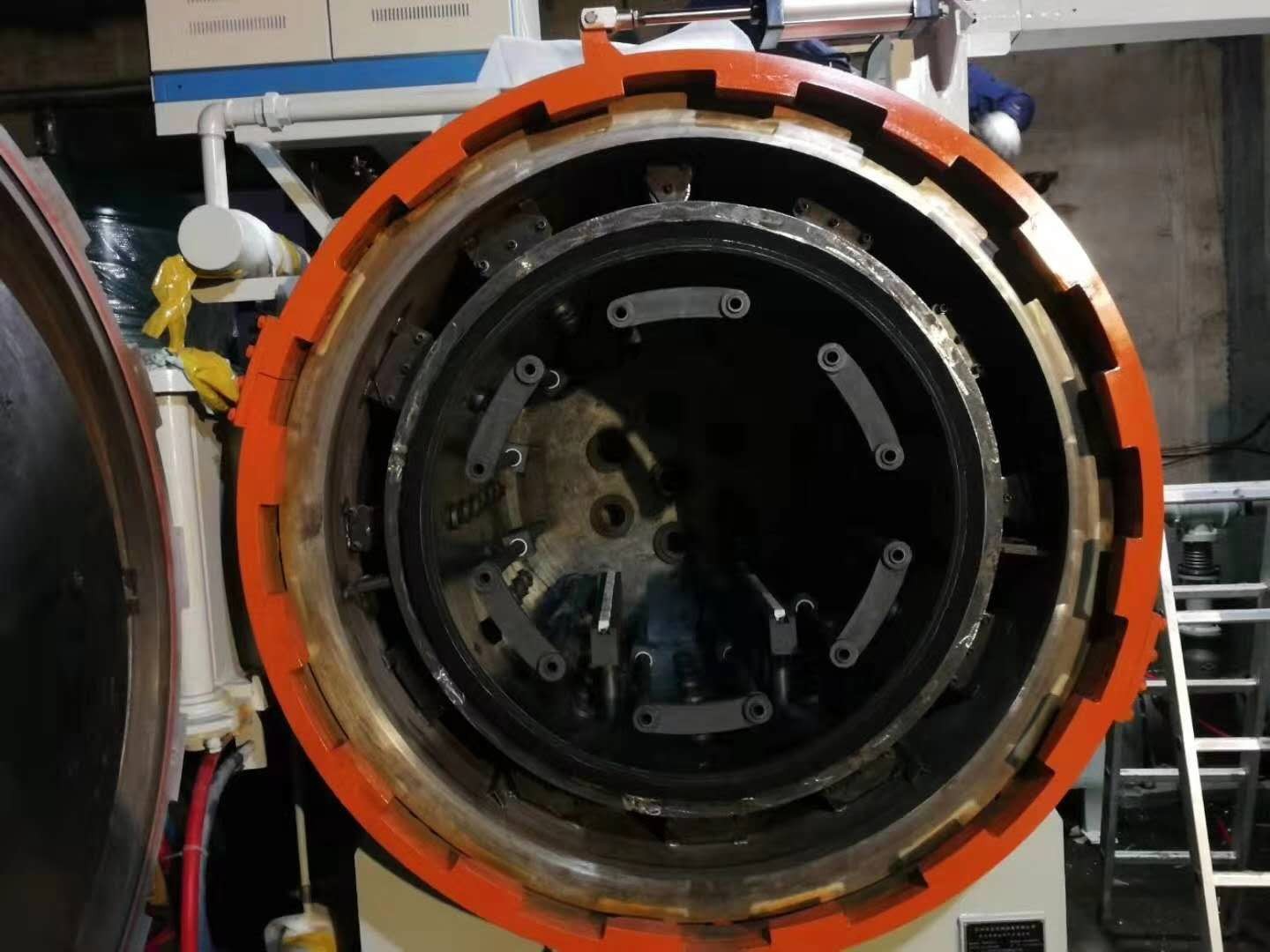

Product Show
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
