7140 rotary round table surface grinder

BrandTAIYE
Product originHANGZHOU CHINA
Delivery time30 DAYS AFTER ORDER CONFIRM
Supply capacity30 SETS PER MONTH

Taiye CNC machine tool have more than 15 years high performance machine tool manufacture experience, special use in aluminum extrusion mold dies and metal machining industrial. Taiye machinery company, more than 200 high tech talents and more than 20000 square meter production workshop. We have more than 10 machine tool software patent rights, which is make our machine tool have more competitive advantage Taiye vertical machining center, hot sale in southeast Asia, north Africa, China mainland. our customer include JMA aluminum company, FengLu aluminum, Xingfa alumium company, etc.

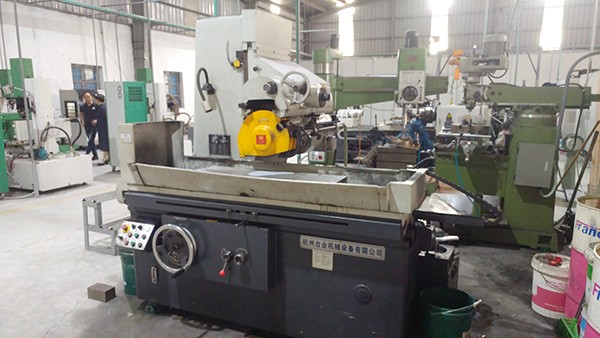

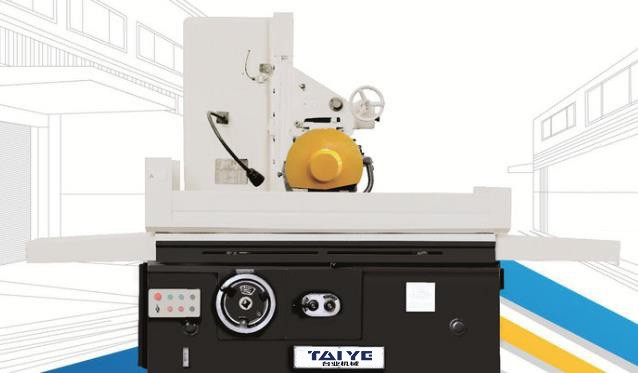

7140 rotary round table surface grinder

Taiye Rotary table surface grinder machine, high stablity, Max grinding 400 MM mold dies.

The rotary round table surface grinders grind the workpiece with the end-face of the emery wheel.It is an efficient ,precision and stable machine tool.This series of machine tool improved greatly in rigidity of the bed and grinder head.Using three point adjustment .need to choose proper fine grit grinding wheel when treat work-pieces that need highly polished and precision.specially for metallurgical industry,saw web,automobile ,tools and bearing industry.

Production overview

Surface Grinder

Parameter

Surface Grinder
Type			TY 7140
Worktable Size（Width X length）		mm	400 x 1000
Maximum grinding size : L X W X H		mm	1000 x 400 x 400
Max longitudinal movement of the table		mm	1100
Maximum lateral movement of the grinding head		mm	440
Maximum vertical movement of the grinding head		mm	400
Grinding head vertical feed handwheel scale value	Per division	mm	0.01
	Per revolution	mm	1
Wheel size		mm	350×40×127
Spindle speed		r/min	1440
Motor power		KW	9.2
Wheel spindle motor power		KW	5.5
Oil pump motor power		KW	3
Processing parallelism		mm	0.008/300
Surface roughness		μm	Ra：0.63
NW / GW		KG	3700/4000
Dimension		MM	2280×1700×2500

Packing & Delivery

Packing Details : general packing for seashipping

Delivery Details : 30 days after order confirm

Tags:

How About Warranty?
We Provide One Year Warranty And Free Component In Guarantee Time
What About The MOQ?
MOQ is one sets.
Can You Provide Customzied Machines?
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
What Is The Advantage About Your Machine Tools ?
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
How Can I Choose The Most Suitable Machines ?
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Where Is Our Factory? How Can I Visit There?
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
