Brass Wire EDM Machine - Wire Cut EDM, Slow Speed Wire EDM Machine For Aluminium extrusion dies
All taiye CNC machine tools are Special design for Aluminium Extrusion dies, Taiye wire cut EDM machine are use the high rigidity and stablity HT250 cast iron base machine, Imported brand servo motor, bearing and screw, the machine tools not only use for Aluminium Extrusion dies , it also suitable for 3C electronic products, automobile molds, hardware molds, and other wire cutting processing.

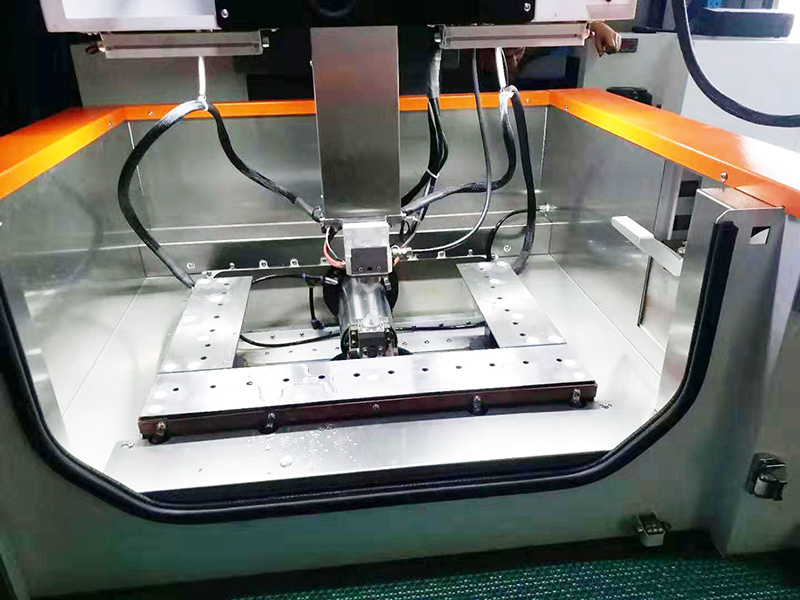

Taiye Brass Wire cut EDM machine tools are uses a copper wire electrode with a diameter of 0.02-0.3mm to generate pulsed discharge in deionized water, which corrodes the workpiece. Compared to molybdenum wire EDM machine tools, Taiye Brass Wire Cut EDM machine tools are include:
Wire speed: 300 mm/sec
Processing accuracy: maximum ± 0.001mm
Surface quality: Ra can reach 0.05 μ m after multiple cuts

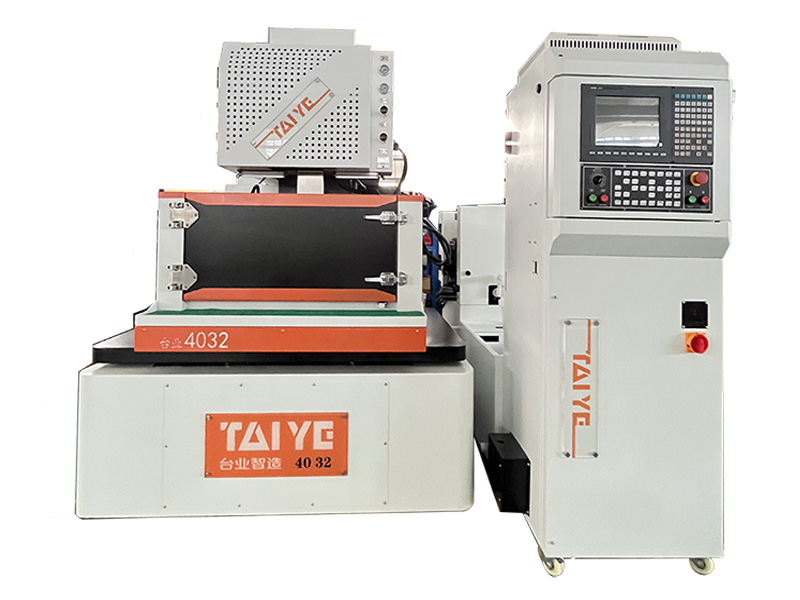

Style | 4032 CNC Wire EDM Machine | |
AXIS travel（LXWXH) | mm | 400*320*220 |
Axis Movement | mm | 10*10 |
Max workpiece size （Width X Depth X hight) | mm | 725* 600* 215 |
Max workpiece weight | mm | 300kg |
X/Y feeding speed | mm/min | 1500 |
Wire diameter | mm | 0.15-0.3 |
Max wire feed speed | mm/sec | 300 |
Wire tension | mm | 300-2500(gf) |
Filtration capacity | mm | 650L |
Filtering method | Paper net | |
Ionic resin filter | L | 14L |
Water quality control | Auto | |
Liquid temperature control | Auto | |
Max output current | A | 25A |
Current selection | 10 | |
Rest time | 50 | |
Input | USB,LAN | |
Screen display | 10inch color | |
Control axis number | X,Y,U,V,Z(5Axis），6th axis optional | |
Setting unit | mm | 0.001mm |
Max instruction value | mm | ±9999.999mm |
Round magnification | 0.001-9999.999 | |
Processing condition memory | 1-100 | |
Max power consumption | 3Phase 220±5%/11KVA(Or designated industrial voltage by the customer's country) | |
According to data from the China Machine Tool and Tool Industry Association, the number of slow wire equipment in China will exceed 28000 units in 2023, accounting for 43% of its application in the mold industry. With the implementation of the "Made in China 2025" technology roadmap, the localization rate of precision machining equipment is expected to reach 70% by 2025.
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
