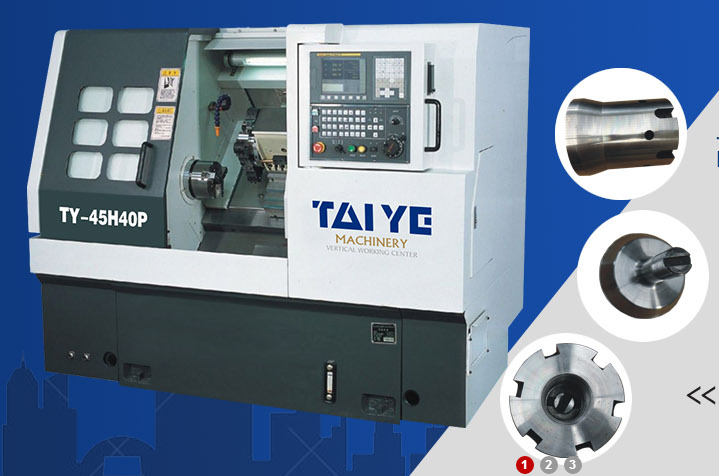

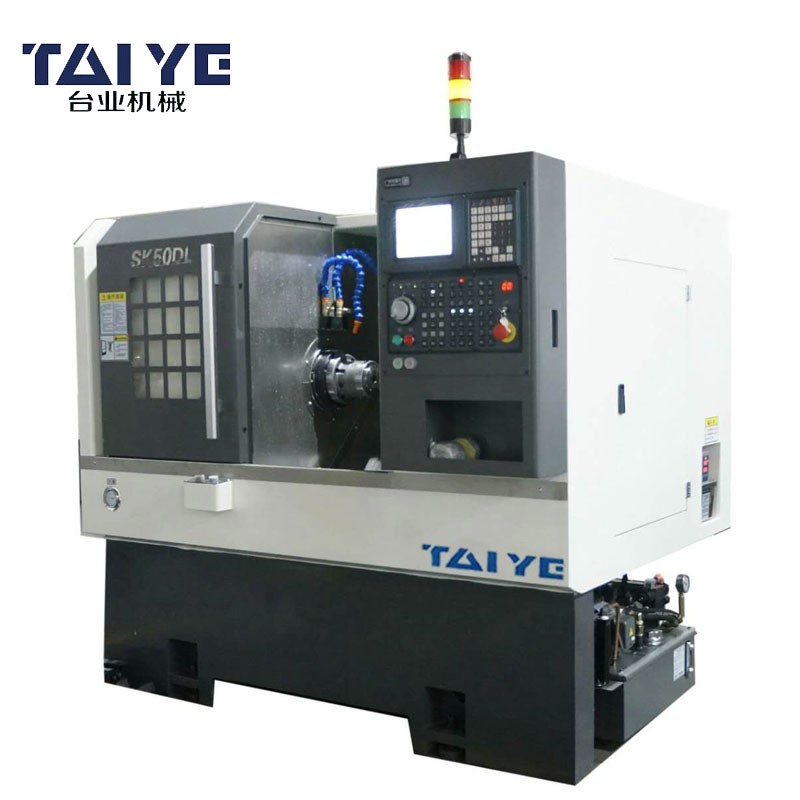

16" X 14" Slant Bed CNC Lathe For Metal Working
Features
★ 30 degrees overall oblique bed structure design, long-term stability and high precision of the machine
★ Import brand spindle, slide ball screw, linear, bearing.
★ High rigidity hydraulic cock stock and had high stable performance, make production and processing more convenient.
★ Suitable for all kinds of medium sized plates and shafts products which is high accuracy, hard processing and mass production, such as cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency.
★ Taiye fool like style operation system and more than 10 patent rights, simple and easy to use, saving your training costs and labor costs
| STYLE NO.: | TY-42L | |
| Max. swing dia.over bed (MM) | 420 | |
| Max swing dia. over slide (MM) | 128 | |
| Max turning Dia.for plate (MM) | 420 | |
| Max turning Dia.for shafts (MM) | 128 | |
| Standard Distance for Ejector pin (MM) | 350 | |
| X/Z servo motor | Mitsubishi Electric (JP) | |
| X/ Z axis motor power | 1.3 KW | |
| X Axis travel (MM) | 450 | |
| Z Axis travel (MM) | 320 | |
| Max processing length (MM) | 330 | |
| Lathe bed | 30° overall oblique bed structure | |
| X/Z Bi-directional linear guideway | ||
| Spindle drive mode | Main motor direct-connected＋Independent spindle unit | |
| Spindle unit | A2-5（6 inch） | |
| Spindle Bore （MM) | 56 | |
| Max. Dia. Of through-hole | 45 | |
| max spindle speed（rev/min） | 5000 | |
| Hydraulic cylinder | 6 inch | |
| main motor power（KW） | 5.5 / 7.5KW（servo） | |
| X．Z axis servo motor mode | electrical＋coupling direct-connected 11N.M | |
| guideway type | Line rail 35/35 MM | |
| Tool Post(Turret) | multiple spindle cutter | |
| Tool Shank size：MM | 20×20 | |
| tool change time (sec.) | 0.2 | |
| boring cutter size： | 20 MM | |
| Type of tail stock | Hydraulic | |
| Slider trailer，inblock move | ||
| Dia. For tail stock | 65 | |
| Travel of tail stock quill | 80 | |
| Taper of tail stock quill | Fixed mandrel tail stock | |
| MT4# | ||
| Max Travel of tail stock | 300 | |
| Standard | SYNTEC/ KND system (Taiye version) | |
| Positioning accuracy | 0.005 | |
| Repeat positioning accuracy | 0.003 | |
| Roughness | Um Ra≤0.8 | |
| Overall dimension | 2.5*1.7*1.5 M | |
| Power capacity | KVA 50 | |
| Weight | 2500Kg | |
Packing Details : Gerenal packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
