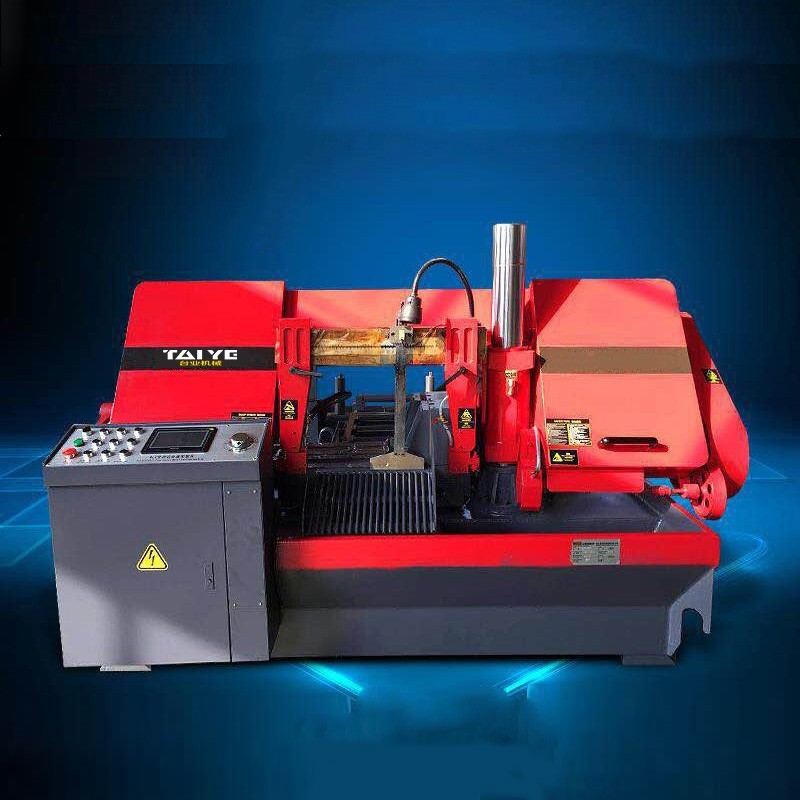

Taiye 16" Metal Cutting Band Saw
It uses a bimetallic band saw blade as a cutting tool to cut ferrous metal round bars, square steel, profiles... etc. It can also cut non-ferrous metals. It has the advantages of narrow incision, high efficiency, low energy consumption, less consumables, energy saving and environmental protection. It is one of the best equipment for sawing process for steel group, mold blank, machinery, metallurgy, mining, petroleum, chemical, automobile, shipbuilding, machine tool and other enterprises and institutions
Details Of Main Technical Requirements
名称及技术要求 Name and technical requirements | 单位 Unit | 数值及备注 Values and remarks |
设备的基础条件（使用条件及动力参数） Basic conditions of equipment (use conditions and power parameters) | 电源：电压：380VAC±10% 50Hz±1Hz 三相交流 温度：最高温度45℃、最低温度-5℃ Power supply: Voltage: 380VAC±10% 50Hz±1Hz three-phase AC Temperature: highest temperature 45℃, lowest temperature -5℃ | |
设备最大切削范围：高×宽 Max cutting range: H×W | mm | 420×420 |
锯切坯料直径 Saw blank diameter | mm | Φ420 |
最大负荷生产率试验： Maximum load productivity | cm2/min | 碳钢≥45；不锈钢≥25 Carbon steel≥45; stainless steel≥25 |
锯带规格：长×宽×厚 Saw band spec.:L x W x Thickness | mm | 4910×41×1.3 |
工作台许用负载重量 Load weight of workbench | T | 8 |
锯切工件端面垂直度 Verticality of sawing workpiece end face | mm | 垂直：优于0.3/100 Vertical: better than 0.3/100 |
整机运行噪声 Operating noise of the machine | db | <85 |
夹紧油缸直径 Clamping cylinder diameter | mm | 80 |
锯带速度 Band speed | m/min | 25/40/60/80 |
锯切进给速度 Sawing feed speed | mm/min | 0～300（液压无极调速） Hydraulic stepless speed regulation |
油箱容积 Fuel tank capacity | L | 大于60 ＞60 |
机床总重量（主机） Machine weight | t | 大于2.2 ＞2.2 |
电机总功率 Motor Power | kw | 大于4.75 ＞ 4.75 |
排屑方式 Chip removal method | 自动 Auto | |
整机操纵方式 Machine control mode | 手动、自动操纵 Manual and automatic operation | |
锯床送料方式 Sawing machine feeding method | 液压送料，行程435mm Hydraulic feeding, stroke 435mm | |
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
