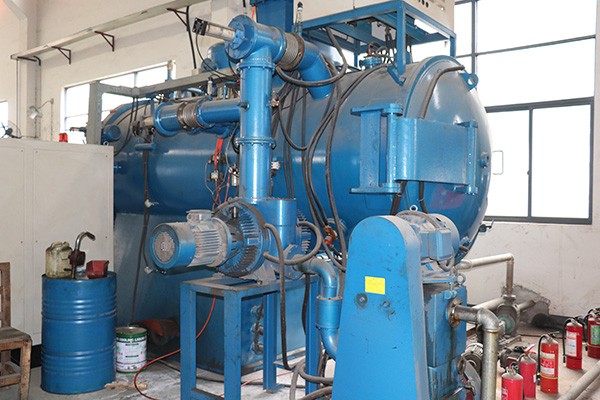

1288 Oil Quenching Pressurized Air Cooled Heat Treatment Vacuum Furnace

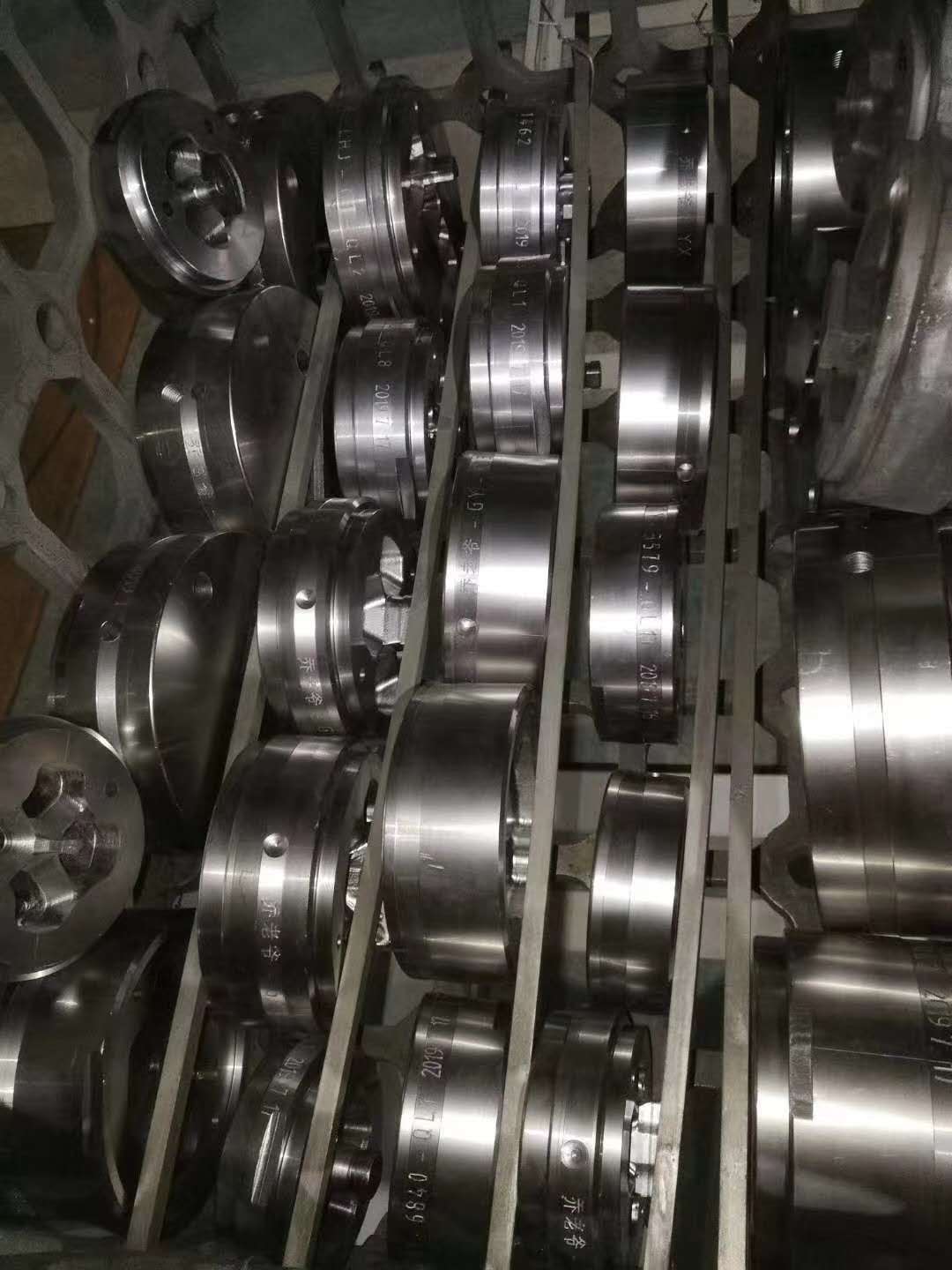

TZC2-966 Double chamber oil quenching pressurized air cooled vacuum furnace is double chamber horizontal vacuum heat treatment equipment with oil cooling and pressurized air cooling. Suitable for various vacuum heat treatment processes such as high-speed steel, high-alloy steel molds, precision bearings, oil pump nozzles, hydraulic parts, gas turbines and gas turbine blades, such as oil quenching, gas quenching, annealing, brazing, sintering, etc
Main technical parameters and specifications
Effective heating zone size（mm） | （L）1200×900（W）×900（H） |
Rated load | 800 kg （ Including baskets, fixtures） |
Maximum temperature | 1320℃ |
Furnace temperature uniformity | ( Empty furnace, 1000°C, Nine-point temperature measurement) ≤±5 |
Ultimate vacuum | (Empty furnace, after purification by oven) 4×10-1 |
Pressure rise rate | ≤6. 5×10ˉ1Pa /h |
heating power | 130Kw |
Fan power | 22Kw |
Air-cooled pressure | ≤0.2MPa(2×105Pa) |
Applicable medium | 氮气 Nitrogen |
Total installed power | ≤175 Kw |
Water Consumption（m3 /h） | 40 |
Workpiece transfer time | ≤25s |
Packing Details : general packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
