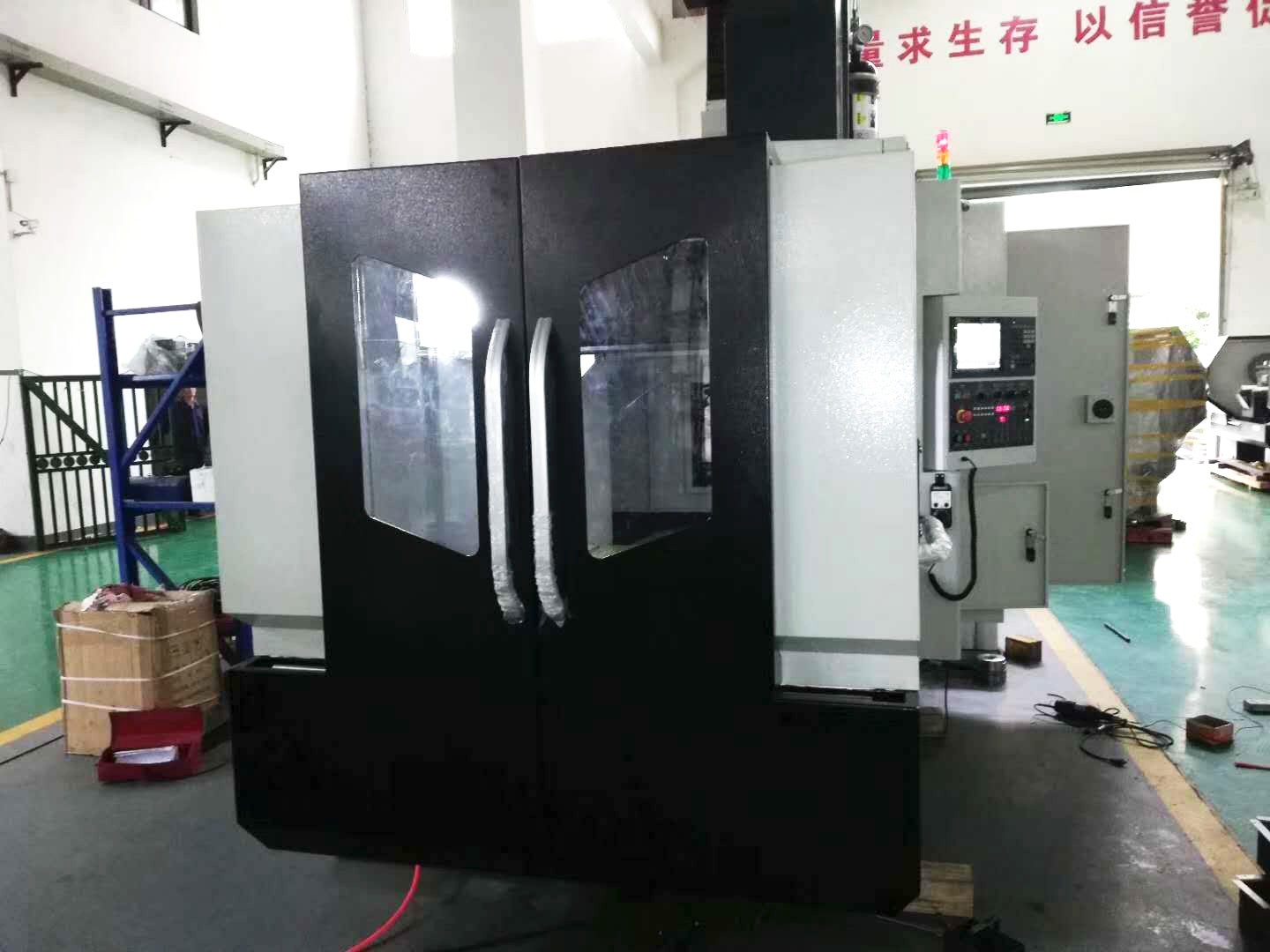

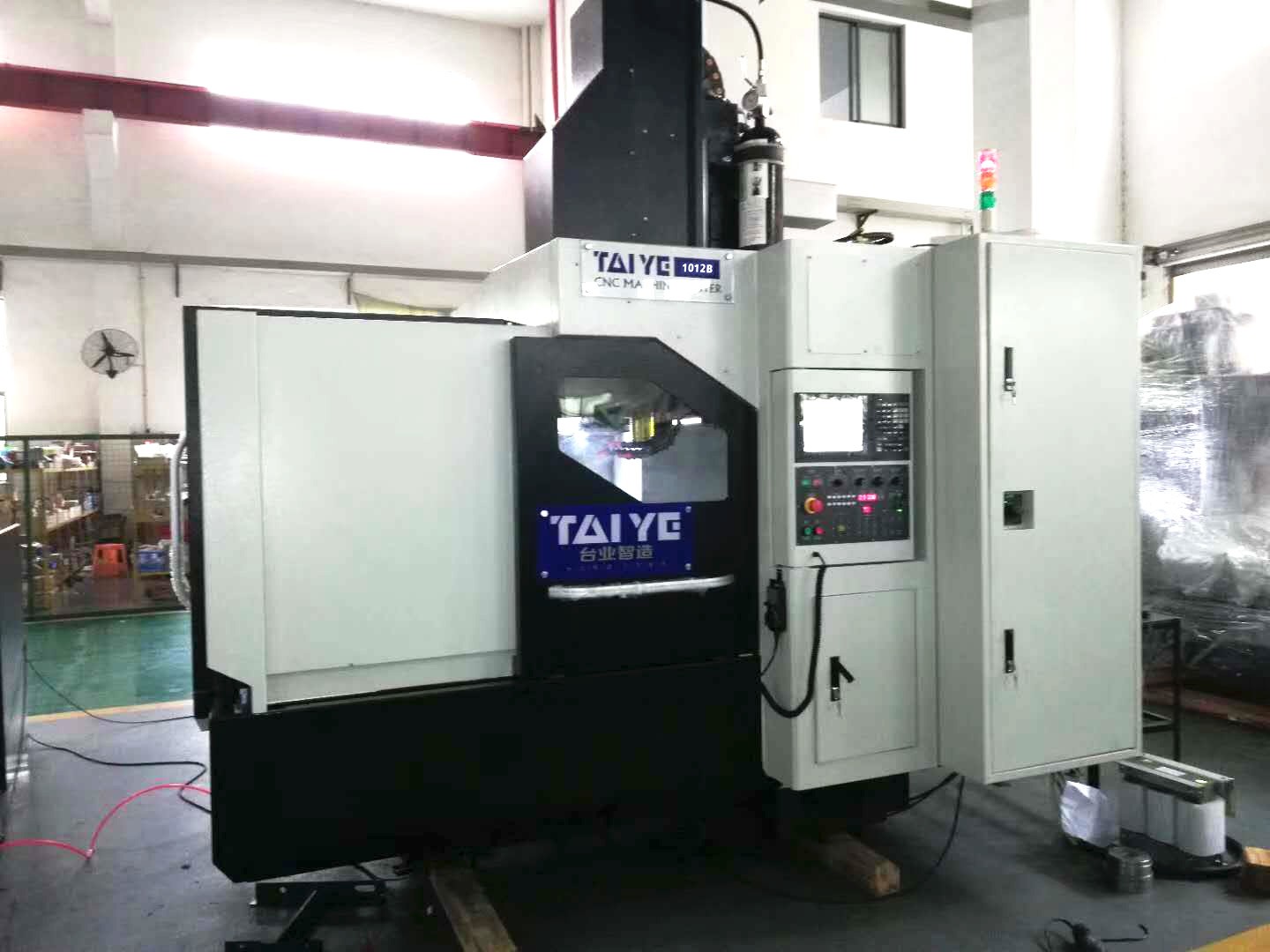

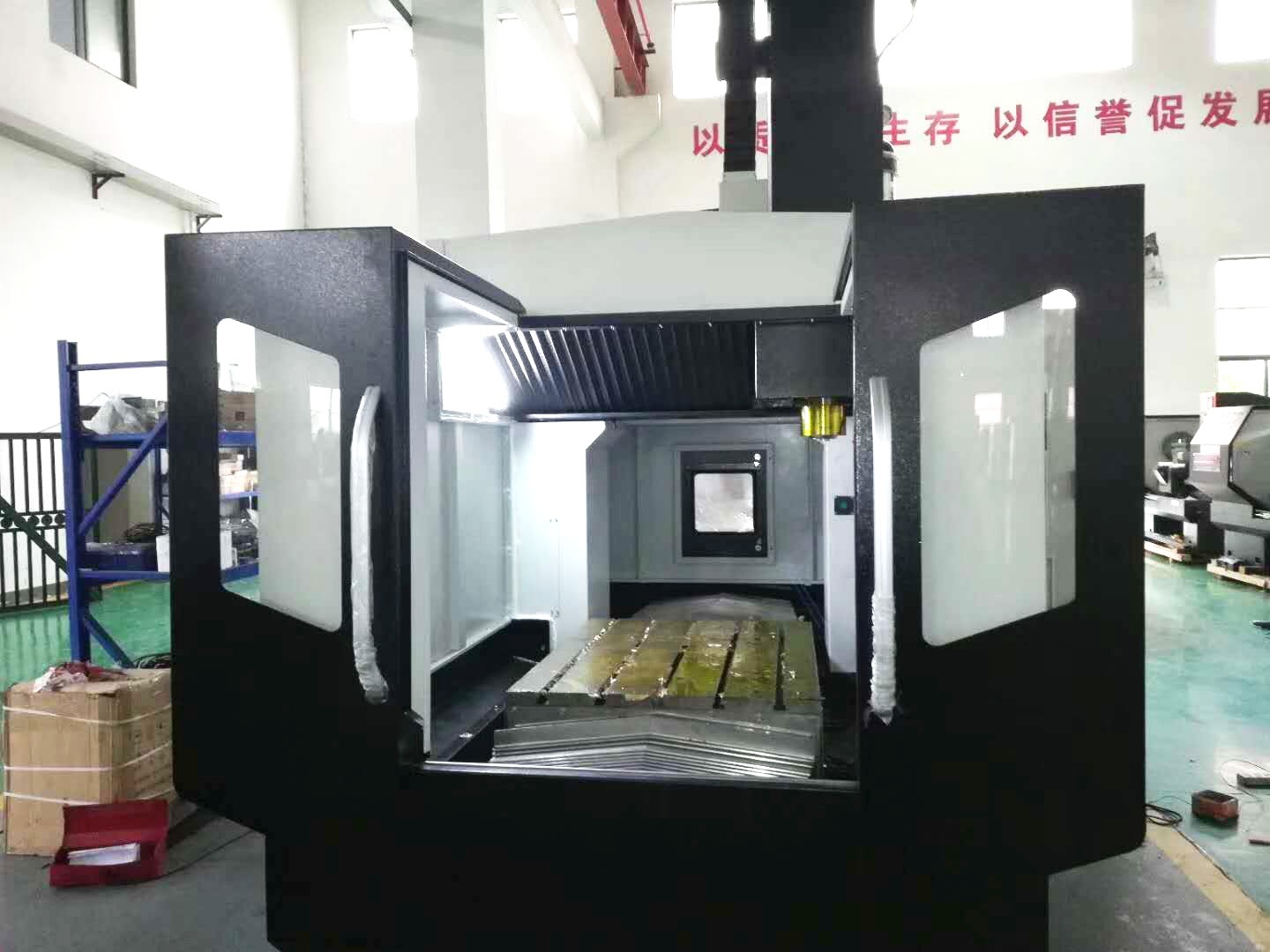

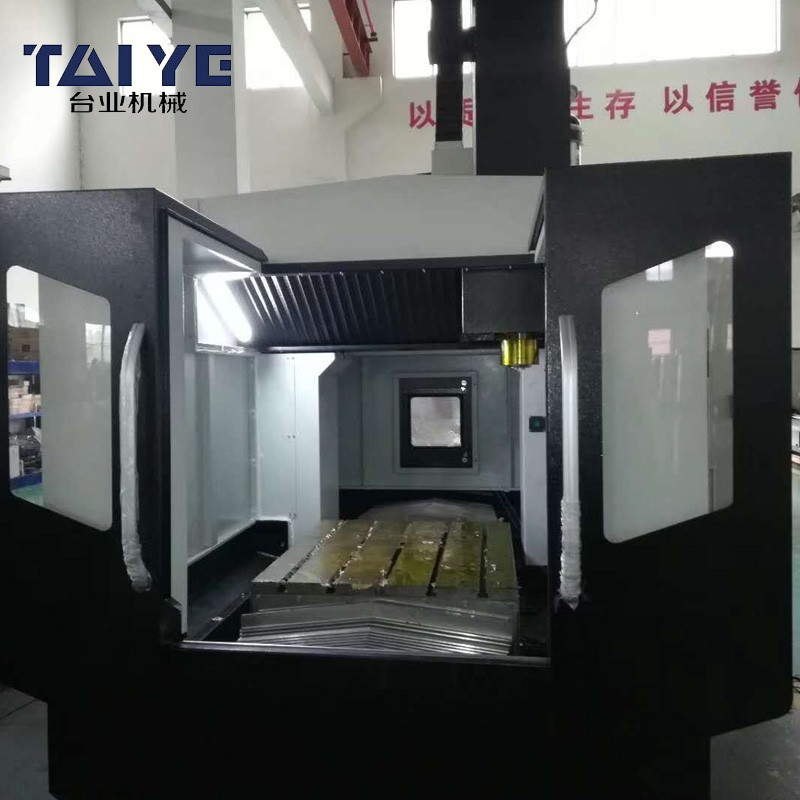

1012B Gantry Milling Machining Center For Mold Proces
Machine Introduction
(1). Whole resin sand of high quality casting, after stress relieving and precision finish,key position use import components and install according to international standard.
(2). Our 3 axis precision grade high rigid line rail use HIWIN(Taiwan) or PMI,C3 grade precision double nuts ballscrew after pre –tight eliminate the intervals between axis,increase the transmission accuracy,make sure the favorable positioning accuracy and resetting accuracy of each axis.
This machine is suitable for machining each complex curved surface parts in machinery industry for its high efficiency and performance,especially for high precision mould.
(3). we use positive displacement oil distributor,timing and ration to supply oil to each lubrication housings,make sure the uniformity and lubrication of each lubrication surface,decrease slide grind resistance effectively.
(4). X,Y,Z three axis exchange servo motor contact precision ballscrew through high precision no backlash,ballscrew and bearing use high precision and rigid like group angle contact ball bearing.
(5). repeating accuracy:0.003mm.
Machine tool model | TY 1012 B | unit | |
Working table | Working table size | 1100× 900 | mm |
Gantry door width | 930 | mm | |
Working table load | 1500 | Kg | |
T-slot width | 5-18 | mm | |
Machining range | X axis travel | 1200 | mm |
Y axis travel | 1000 | mm | |
Z axis travel | 420 | mm | |
Distance from spindle face to working table | 70-490/220-640(heighten) | mm | |
spindle | Spindle taper | BT40 | |
blind rivet specification | 45° | ||
Spindle speed | 8000/15000 | rpm | |
Spindle motor power | 7.5/11 | KW | |
Feed system | X axis rapid move | 15000 | mm/min |
Y axis rapid move | 15000 | mm/min | |
Z axis rapid move | 12000 | mm/min | |
Motor power | X:2KW,Y:2KW,Z:2KW | KW | |
Accessory | 3 axis guide rail specification(XYZ) | X:H35 roller line rail | |
Y:H35 roller line rail | |||
Z:H35 roller line rail | |||
3 axis ballscrew (XYZ) | X:4010 | ||
Y:4010 | |||
Z:4010 | |||
precision | Position accuracy | 0.01/300 | mm |
repeated positioning accuracy | 0.005/300 | mm | |
Machine weight | 6 | T | |
Packing Details : general packing for seashipping
Delivery Details : 30 days after order confirm
We Provide One Year Warranty And Free Component In Guarantee Time
MOQ is one sets.
Yes. We are CNC machine tool manufacturer, we can design and manufacture according to your specific requirements.
Taiye CNC machine tools are high performance and best price. We have more than 15 years high tech CNC machine tool manufacture experience, high research and development capabilities, a production team of up to 200 people, we have more than 10 patents for CNC product technology, making our machine tools more competitive Taiye CNC machine tool are use our own fool like system which is easy to use and max to save to labor
Please tell me your specifications and leave your contact information to us,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Taiye Machinery equipment Company are locate in Yuhang district, Hangzhou City, Zhejiang Province, China, and Our Guangdong office are in Nanhang district, Foshan city. If you come to China, you can contact us and we can pick you up at the airport or station.
